Factory Direct Selling CNC Laser Cutting Machine Stainless Steel

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:427.0833333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:-2px;width:750px;height:427.0833333333333px}#detail_decorate_root .magic-4{vertical-align:top}#detail_decorate_root .magic-5{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-6{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-7{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-8{font-size:18px}#detail_decorate_root .magic-9{width:446px}#detail_decorate_root .magic-10{overflow:hidden;width:446px;height:296.144px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:411px;height:321px}#detail_decorate_root .magic-12{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-13{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-14{overflow:hidden;width:446px;height:277.11466666666666px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-15{margin-top:0;margin-left:0;width:361px;height:271px}#detail_decorate_root .magic-16{overflow:hidden;width:446px;height:318.74133333333333px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:381px;height:329px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:424.2647058823529px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:424.2647058823529px}#detail_decorate_root .magic-20{width:750px;border-collapse:collapse}#detail_decorate_root .magic-21{min-height:18px;padding:5px 10px;width:222px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;width:485px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:18px;padding:5px 10px;width:222.03px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:18px;padding:5px 10px;width:484.667px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:222.03px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:484.667px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{overflow:hidden;width:750px;height:540.1898734177215px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:750.0000000000001px;height:540.1898734177215px}#detail_decorate_root .magic-29{overflow:hidden;width:750px;height:367.8963110667996px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:750px;height:367.8963110667996px}#detail_decorate_root .magic-31{overflow:hidden;width:750px;height:414.9133663366337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-32{margin-top:0;margin-left:0;width:750px;height:414.9133663366337px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:500px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:500px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:768px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:768px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:324px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:-9px;margin-left:0;width:549px;height:328px} Product Description Details Images Ⅰ：Parts Raytools laser cutting head option :WXS

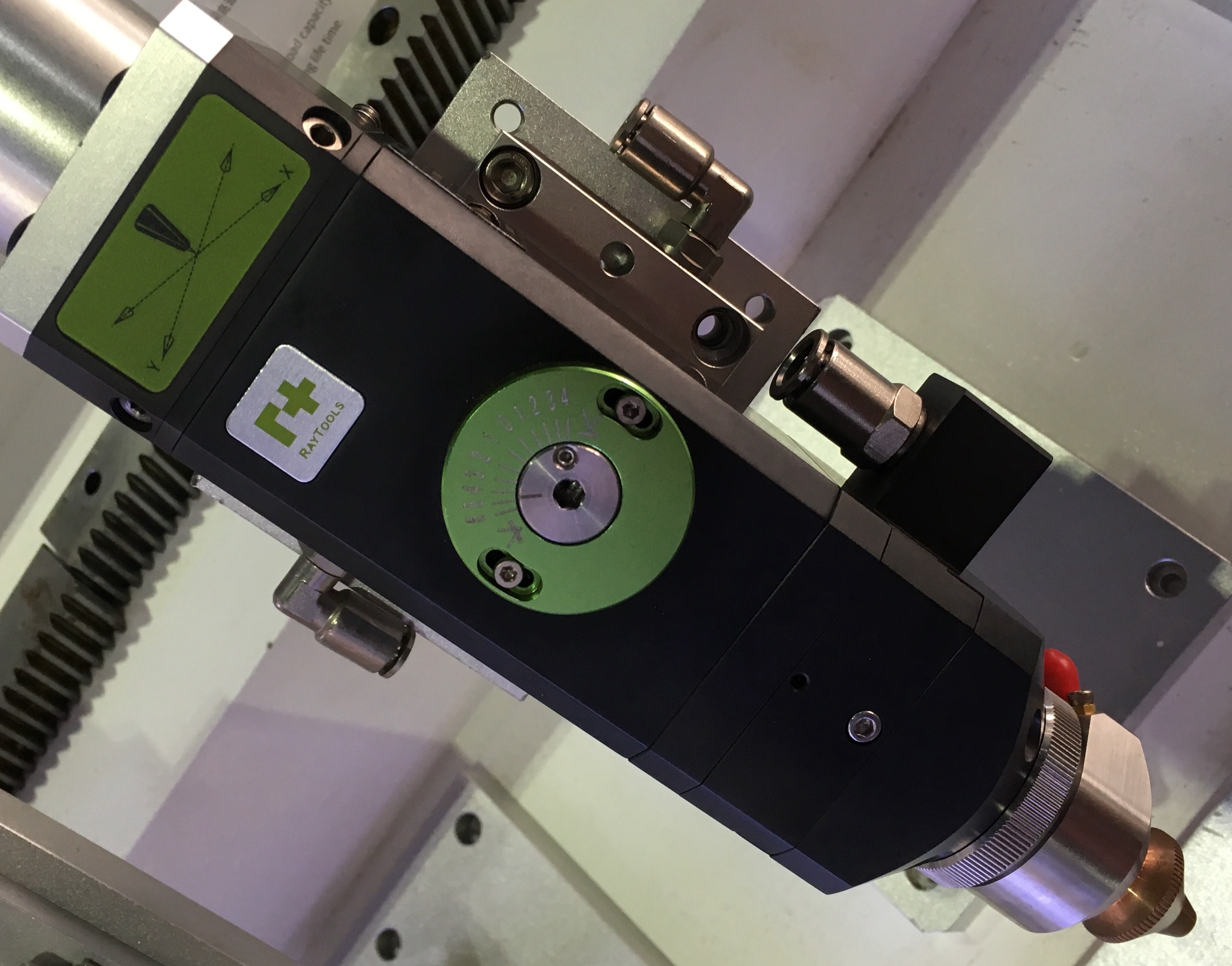

Anti-collision design,height adjustment high sensitivity

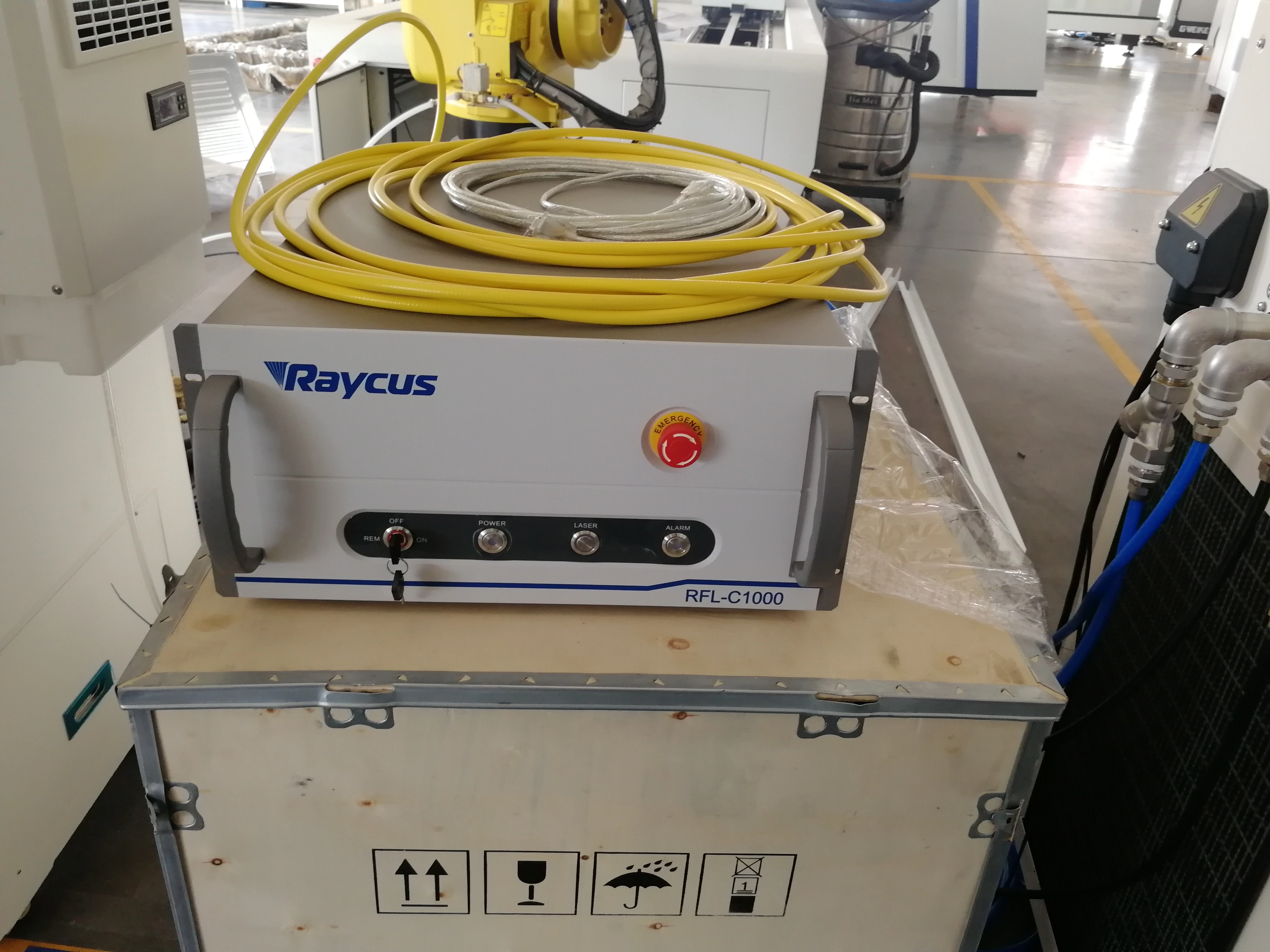

long life and high accurancy Raycus Laser source option :IPG ,MAX

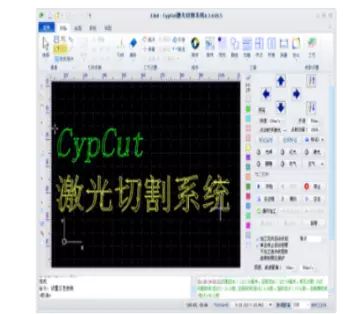

the china best laser source have 2 years warranty . Cypcut control system The laser cutting system is a full-featured open-loop control system introduced specifically for the sheet metal processing
industry. Ⅱ：Parameters

Model No.	New VLF3015LN
Working Area	1500*3000mm
Fiber Laser Power Source	Raycus/IPG/MAX
Laser Power	500W/750W/1000W/1500/2000W/3000W
Laser Cutting Head	Raytools

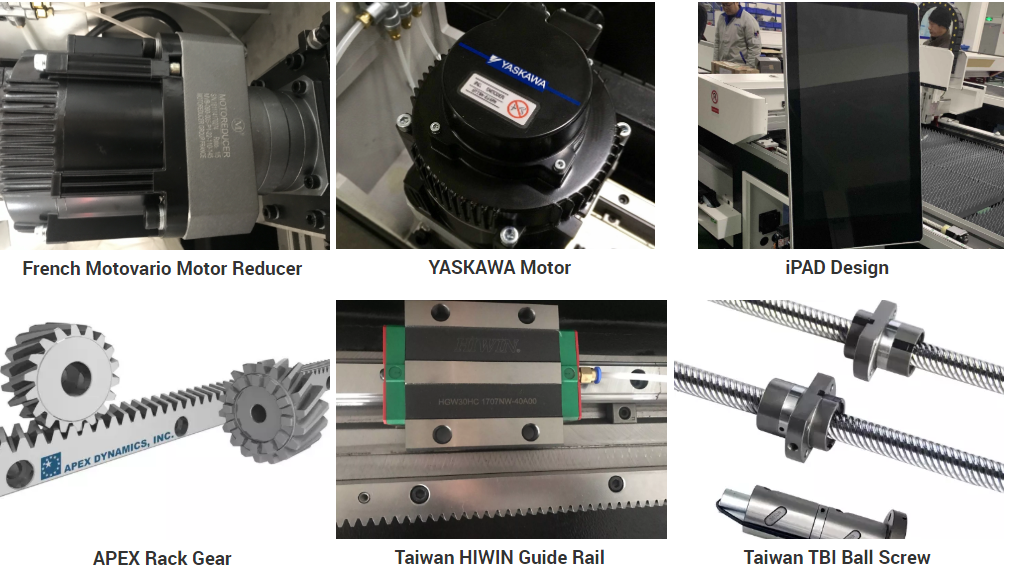

Motor and Driver	Japan Yaskawa/Panasonic Servo Motor and Driver
Control System	Cypcut Control System
Max Running Speed	40m/min
Max Acceleration	1G
Transmission	APEX Double Rack Gear
Guide Rail	Taiwan HIWIN Guide Rail
Repeat Positioning Accuracy	+/-0.02
Reducer	France Motovario Motor Reducer
Electric Parts	France Schneider
Pneumatic Parts	SMC
Machine Bed Weight	4000kg with Special Heat Treatment (Erosion-Proof)
Optional Exchange Platform	3m Exchange Platform
Optional Rotary	3m Rotary

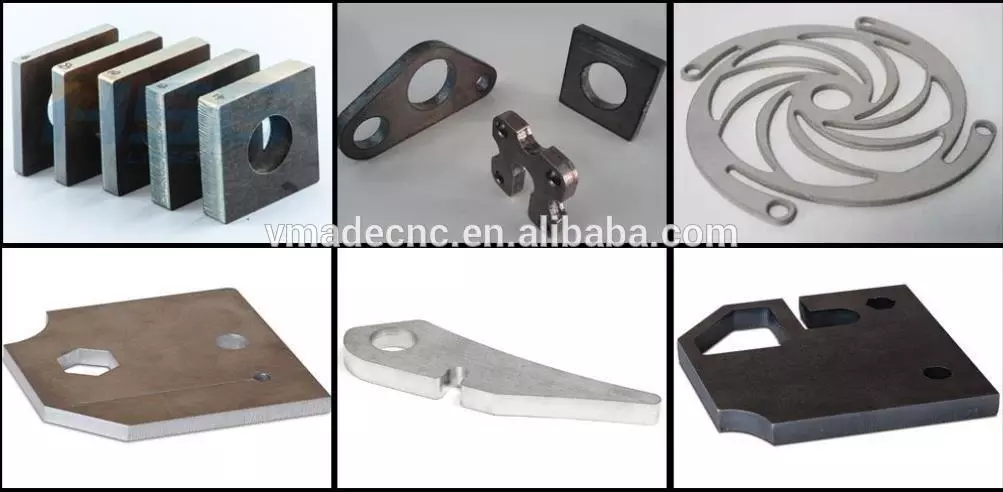

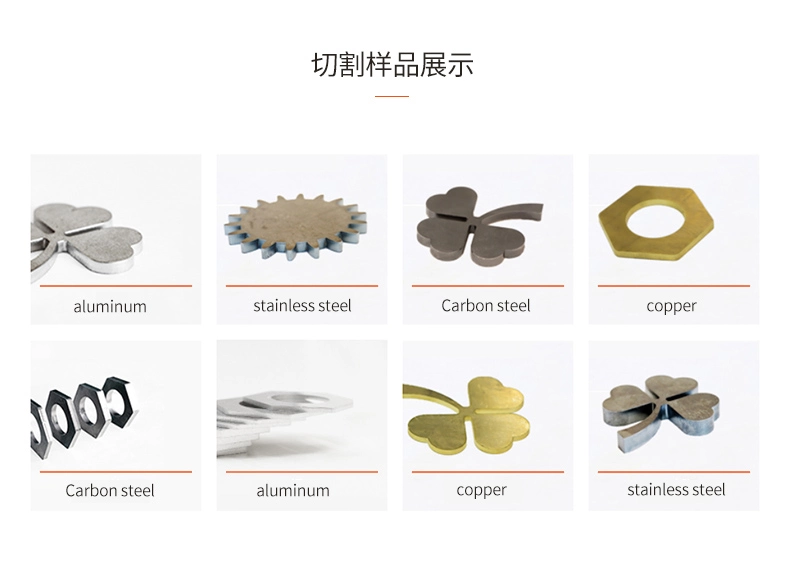

Samples Certificates feedback Ⅰ：Messages Ⅱ：Pictures with customers Our Service Pre-sale Service:
1. For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality.
2. According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency. After-sale Service:
1. Before delivering the machine, we will test and adjust it many times, guarantee that every machine work and high quality,so you can use it directly when you get it.
2. If you have problems while using, 24h online professional advice available.
3. Lifetime software free upgrades.
4. Fiber laser source we warranty for 2 years ,the machine warranty for 3 years.
Contact Information

Contact us if you need more details on laser cutting machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about cnc laser cutting machine、cnc laser cutting machine stainless steel. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Laser Metal Cutting Machine > 16mm-20mm Cutting
