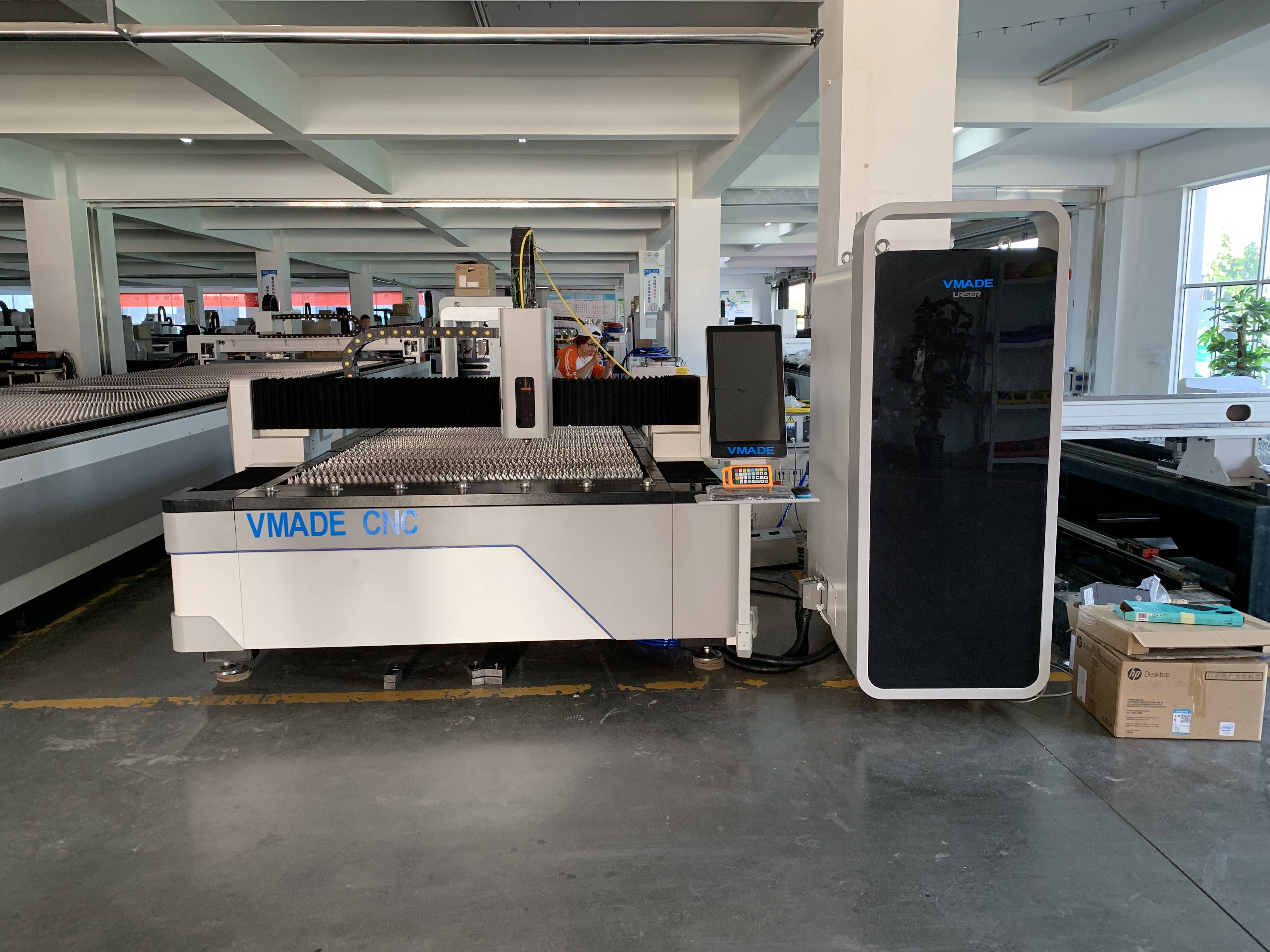

fiber laser cutting machine 1kw 2kw for metal

Product Description

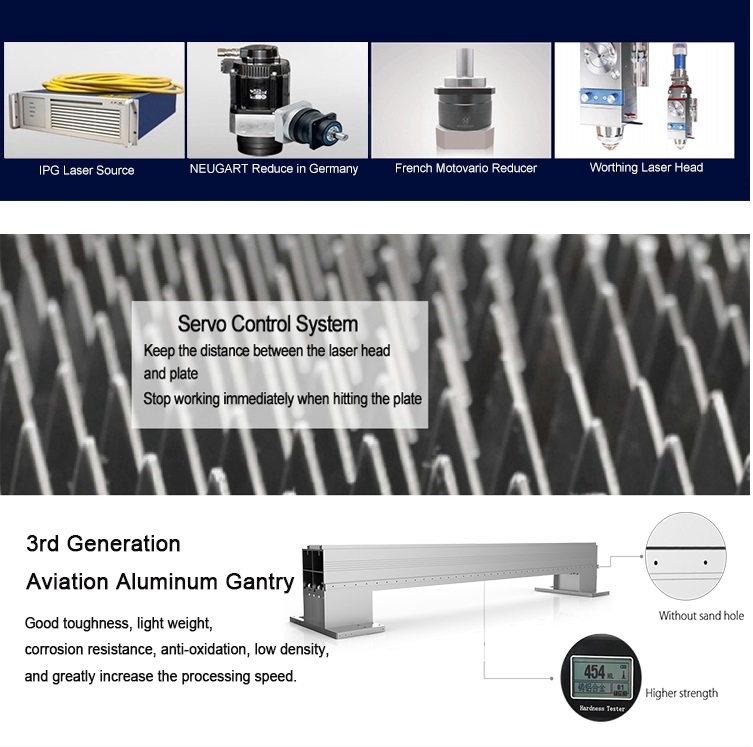

fiber laser cutting machine 1kw 2kw for metal Product Description VMADE fiber laser cutting machine is equipped with Japanese Yaskawa motor, French Motoreducer reducer and Taiwan APEX rack. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is more than 10 years.  The Segmented Rectangular Tube Welded Bed   High strength, stability, tensile strength, ensuring 20 years of use without distortion;   Thickness of rectangular pipe wall is 10mm,and weights 4500 kg. The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed Detailed Imaged   Paramter

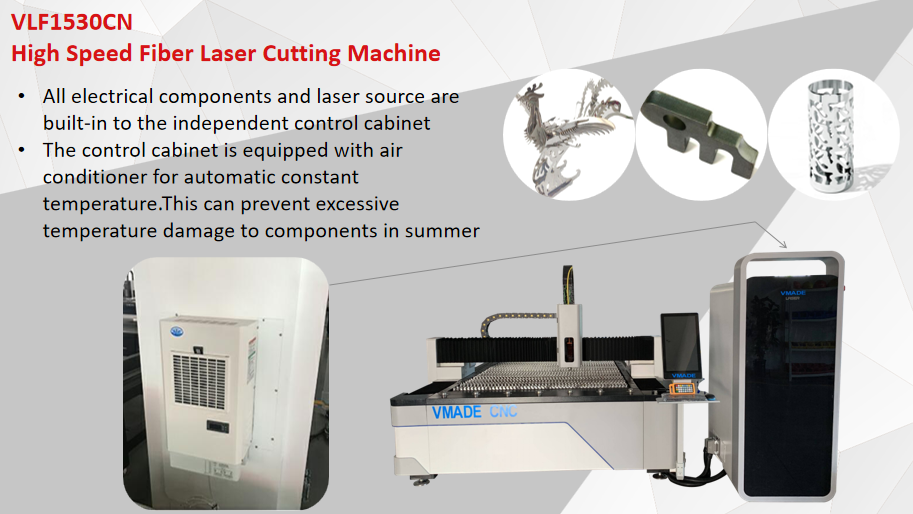

Machine model VLF1530
Laser power 1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions 480X220X180 cm
Working area 3000mm x 1500mm
Repeat positioning accuracy ±0.02mm
Maximum speed 120m/min
Maximum acceleration 1.5G
Specified voltage and frequency 380V 50Hz/60Hz

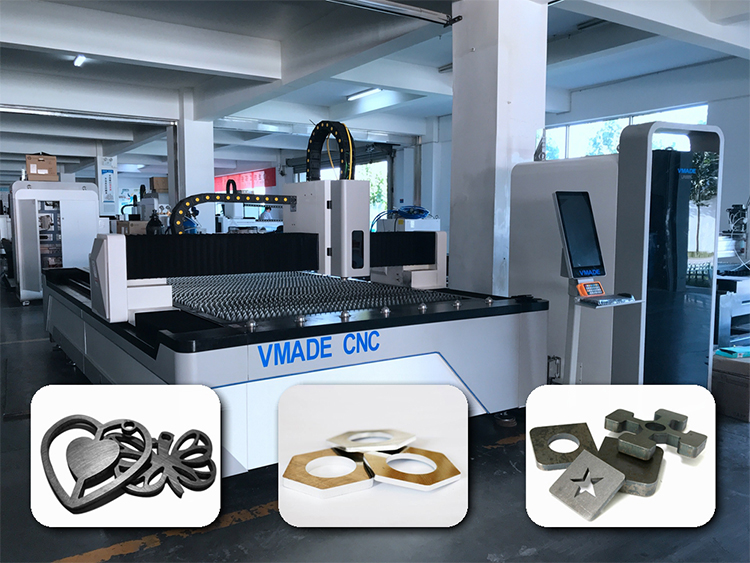

  Packaging & Shipping Sample Show   Certification   FAQ   Q1.How about the payment terms? A:General we use 100% T/T,30 % T/T in advance+70%T/T after check video and pictures before shipment. Q2:How about the shipment terms? A:FOB QINGDAO is our port, if you like CIF to your port ,it is ok ,Kindly tell  me which port is convenient for you ? and you can use your forwarder also . Q3:How about the After-sale service? A:we provide 3-year warranty, Engineers available to service machinery overseas and English manual. Q4: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following detailes:
1.What is your material?
2.The size of material?
3.The thickness of material?  Q5: This is the first time I use this kind of machine, is it easy to operate?
A: A manual is already included in our product packaging,we also provide 24/7 telephone support to our customers and offer a life time warranty.Jinan Vmade as the largest laser manufacturing factory, we have free installation for optical fiber laser machine in addition to the operating instructions door-to-door free installation services we also provide professional engineers, to provide you for free door-to-door training instruction, so please be assured use;  Q6: Why choose agent and OEM?
A: The minimum order is 1 set machine, if you order more one time, the price will be better,Jinan Vmade focus on laser research and development production of 14 years,have 31 national patents, It is the largest fiber laser cutting machine, engraving machine and marking machine manufacture in northen of China,we have advanced technology, quality certification CE, ISO 9001, and FDA. products are exported to more than 100 countries and areas, as a focus on laser industry manufacturers, not only can give you a good quality assurance, but also can offer you a good price. Contact Information   Please kindly let me know what you need!! 1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?  Business Card: Tel:+86 0531 88971992 Cell Phone:+86 15006515936 WhatsApp&Skype:+86 15006515936 Wechat: +86 15006515936

Contact us if you need more details on Metal Steel CNC Fiber Laser Cutting Machine With Raycus IPG For Metal. We are ready to answer your questions on packaging, logistics, certification or any other aspects about China popular efficient high power raycus IPG fiber laser cutting machine、metal sheet cnc fiber laser cutting machine with rotary device. If these products fail to match your need, please contact us and we would like to provide relevant information.
