Aluminum/Iron Metal Engraving Marking Machine for Mold

Product Description Aluminum/Iron Metal Engraving Marking Machine for Mold     Specifications
Polishing/lapping single surface of metal parts and thin and hard brittle non-metal parts. Moulding industry,it can engrave all kinds of nonmetal molulding,especial for autocar  foam moulding,steamship wooden model,aviation wooden model,train wooden model,etc.Musical instrument industry,it can engrave 3D surface of large scale musical instrument and the contour cutting. Metal engraving&milling machines BRM-A Series Parameter List

Description Parameter	VRW-2015	VRW-3030	VRW-4050	VRW-6060
Cutting Area (X*Y*Z mm)	200*150*100mm	300*300*100mm	400*500*100mm	600*600*100mm
X,Y,Z Structure	Square Rail Ball Screw
Table Surface	Plastic

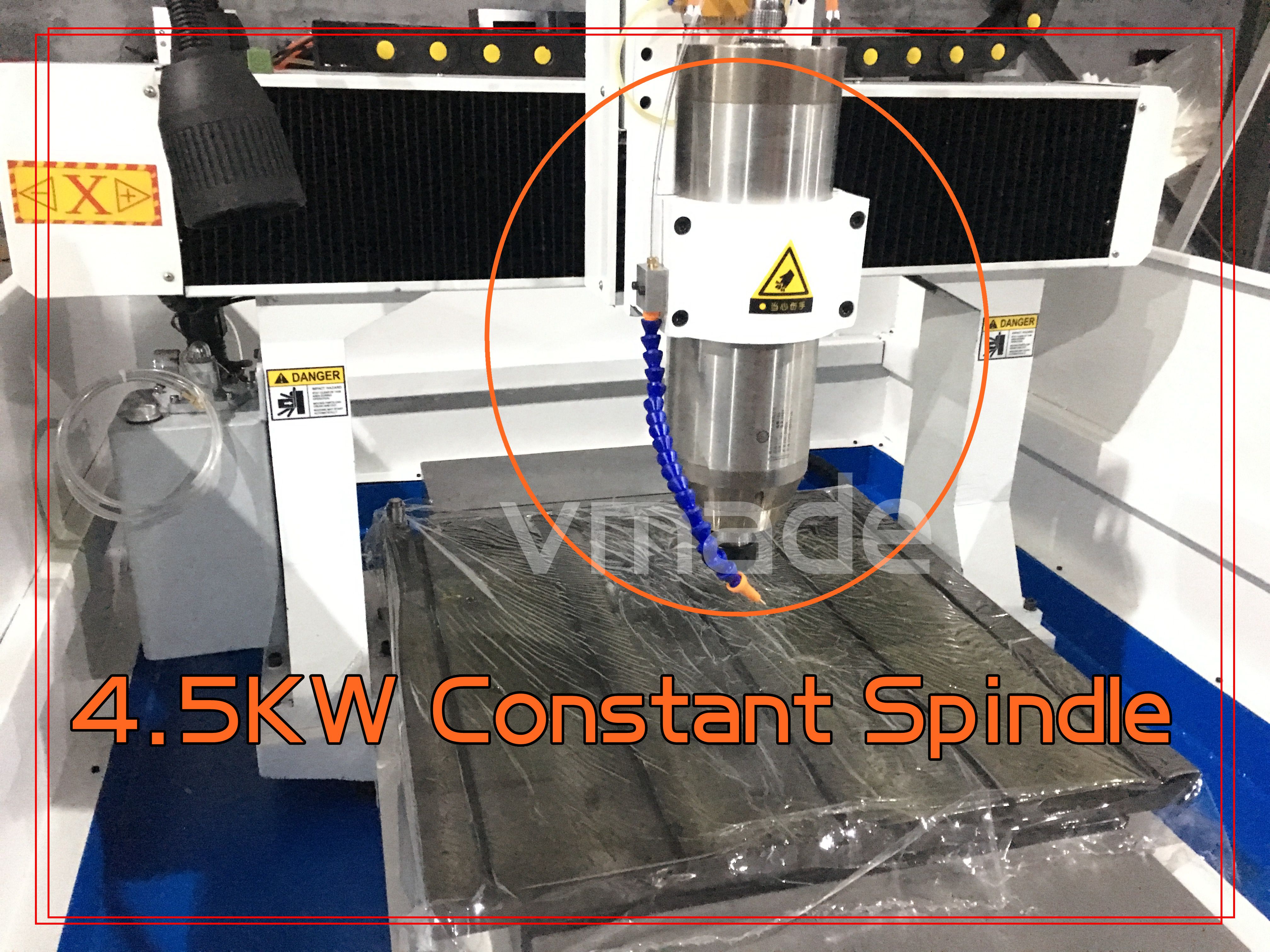

Spindle Power(Kw)	1.5Kw Constant torque spindle metal mode water cooling spindle (Optional:2.2Kw,3.0Kw,4.5Kw,6.0Kw Water-Cooling Constant torque spindle)
Voltage	AC220V.50/60Hz,or 3 phase 380V
Drive Motor	Stepper (Optional:Servo Motor Yaskawa)
Working Dictate	G Code
Operating System	NC-Studio(Optional:DSP System,Match 3 PC Software)
Interface	USB
Flash Memory	128M(U Disk)
Software	Type3(Optional:Ucancam,Artcam,EnRouter,Software)Need to pay extra
Running Environment	Temperature:0~45℃
	Relative humidity:30%~75%

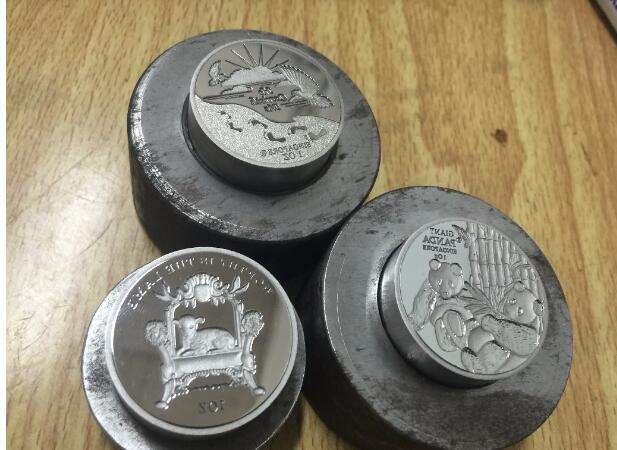

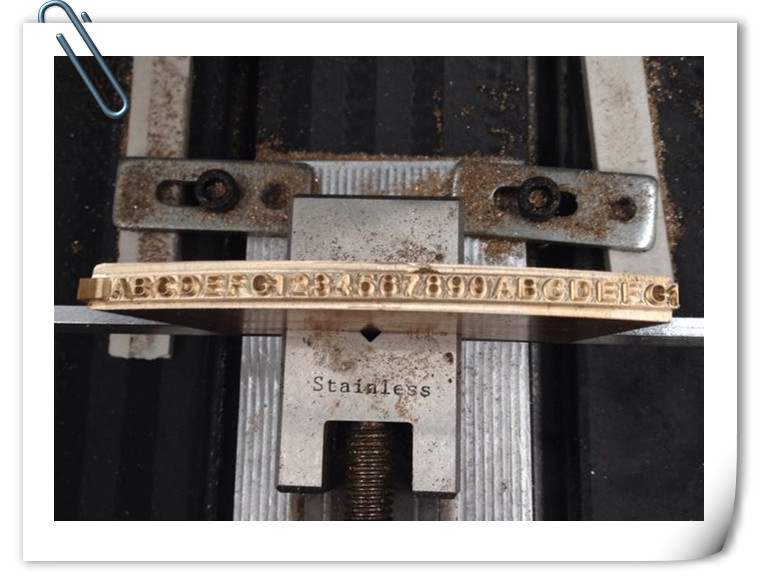

Detail images       Samples Picture Packaging & Shipping Selling Units: Single item
Single package size: 80X70X140 cm
Single gross weight: 300.0 KG
Package Type: standard wooden box     Company Information Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in hightech zone.It is a professional team which specialized in Optic, Electricity, Mechanics. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers. Contact Information Please tell us what you need!! 1.What is your working size?  2.What material do you need to cut/engrave? 3. What is the thickness and size of each materials? 4.What is your business industry? signage or art craft works or what else ?  Below My contact information: Tel:+86 0531 88971992 Cell Phone:+86 18615632037 WhatsApp&Skype:+86 15953190263 Wechat:eel1048421562

Contact us if you need more details on Aluminum\/Iron Metal Engraving Marking Machine For Vin Code. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Metal Engraving Marking Machine、portable cnc milling marking machine. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : CNC router > cnc metal milling machine
