Home > Products > CNC Plasma Cutting Machine > cnc metal/aluminum/steel plasma cutting machine

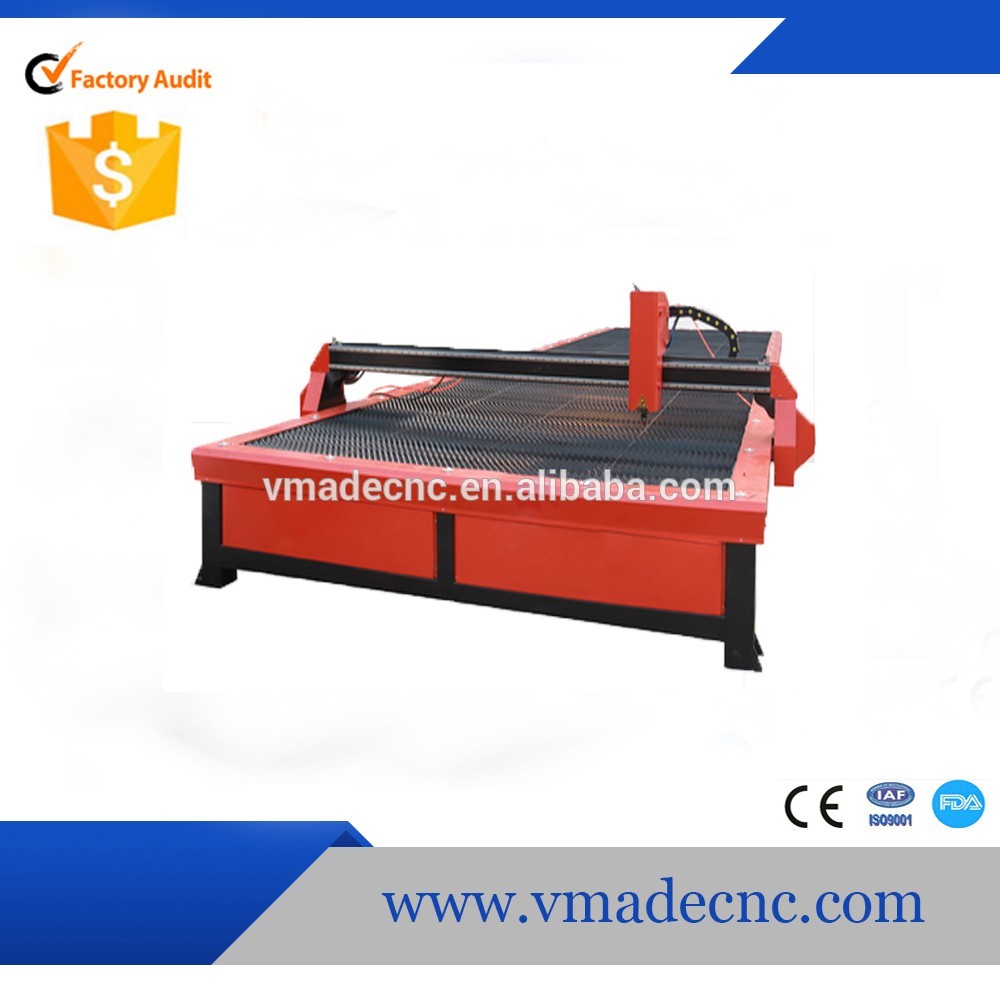

cnc metal/aluminum/steel plasma cutting machine

Product Description

    Product Description                                 Plasma metal cutting Machine     Features of plasma cnc cutting machine    1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.   2. Gantry-type structure, Y-axis synchronous dual-motor drive and XYZ axis with circular rail (optional formula-type linear guide), steady transmission, and high accuracy.   3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy  good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.   4. And other advertising devices(vacuum forming machines, gear cutting machine) to form ad word processing pipeline, completely solve the traditional way of manual processing. Improve efficiency several times.   5. Cutting speed, high accuracy and low cost.   6. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.   7. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated  file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk  exchange control system processing files, easy to operate.   8. Plasma torch power supply and supporting all famous brands, a number of national patents by the  manufacturers. Technology  Technical parameter

Model

plasma cutting machine

Working size

2000mm*3000mm

Repeat positioning accuracy

±0.05mm

Traveling speed

0-24000rpm/min

Cutting speed

10-15m/min

Transmission model

Gear rack drive

Transmission system

X,Y Taiwan Hiwin high-precision,

zero clearance increased

linear guide+ rack

Operating System

START or DSP with USB Interface

Driver

Leadshine drives

Plasma power supply

Huayuan

Cutting thickness

0.1-30mm

Cutting type

Plasma/oxy-acetylene or propane

Input voltage

3 phase,220v/380v±10%

Mode of file transfer

USB Interface

Guide way

Imported square rail

Table-board

Steel blade saw tooth mesa

Straight line positioning precision

±0.2mm/10m

Straight line repeat precision

±0.3mm/10m

Environmental temperature

-5~45°C

Humidity

<90% No concreting

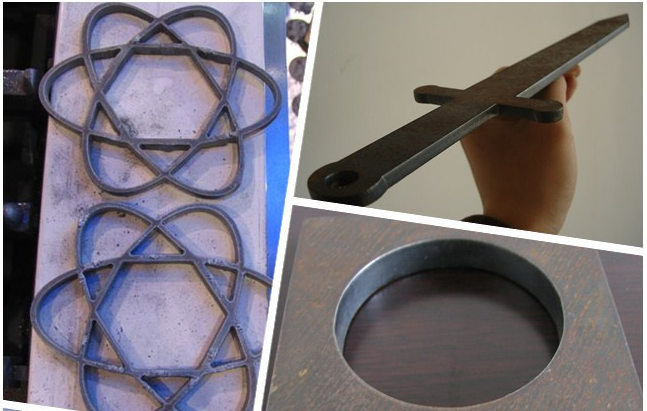

 Application     cheap cnc plasma cutting machine applications industry: Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge  Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection  equipment,ect.   cheap cnc plasma cutting machine applications Materials: All kinds of metal materials such as steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.   Machine picture       sample     Packaging & Shipping   Company Information  Jinan VMADE CNC Machine Co.,Ltd was founded in 2007. For 8 years, Vmade laser has always been devoted in studying and manufacturing laser cutting, engraving and marking etc. With all VMADE staffs'  persistence and hard worke, VMADE laser has developed to a large-scale international manufacturing company.     Contact details Welcome to Enjoy Us ~~We are a Big Family ~  What are you wait for ?     Telphone: 86-0531-88973625 Skype: sale02.vmadecnc.com  Whatapp /Mobile :  + 86 18253136902
Address : No 677,Tianchen Road ,High -Tech Zone ,Jinan city , China .   Bank Account  Bank Name : Bank of China,Jinan Branch  Swift Code :BKCHCNBJ51B Company Name :Jinan Vmade CNC Machine Co.,ltd A/C No :23512278325

Contact us if you need more details on 1325 China metal CNC Plasma Cutting Machine\/cnc plasma cutters for sale. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 65A 120A cnc tube metal cutting tools pipe plate plasma cutting machines、Best PriceCheap 2000*4000MMmm metal plasma cutting machine price. If these products fail to match your need, please contact us and we would like to provide relevant information.
