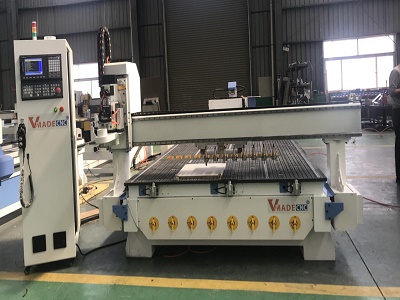

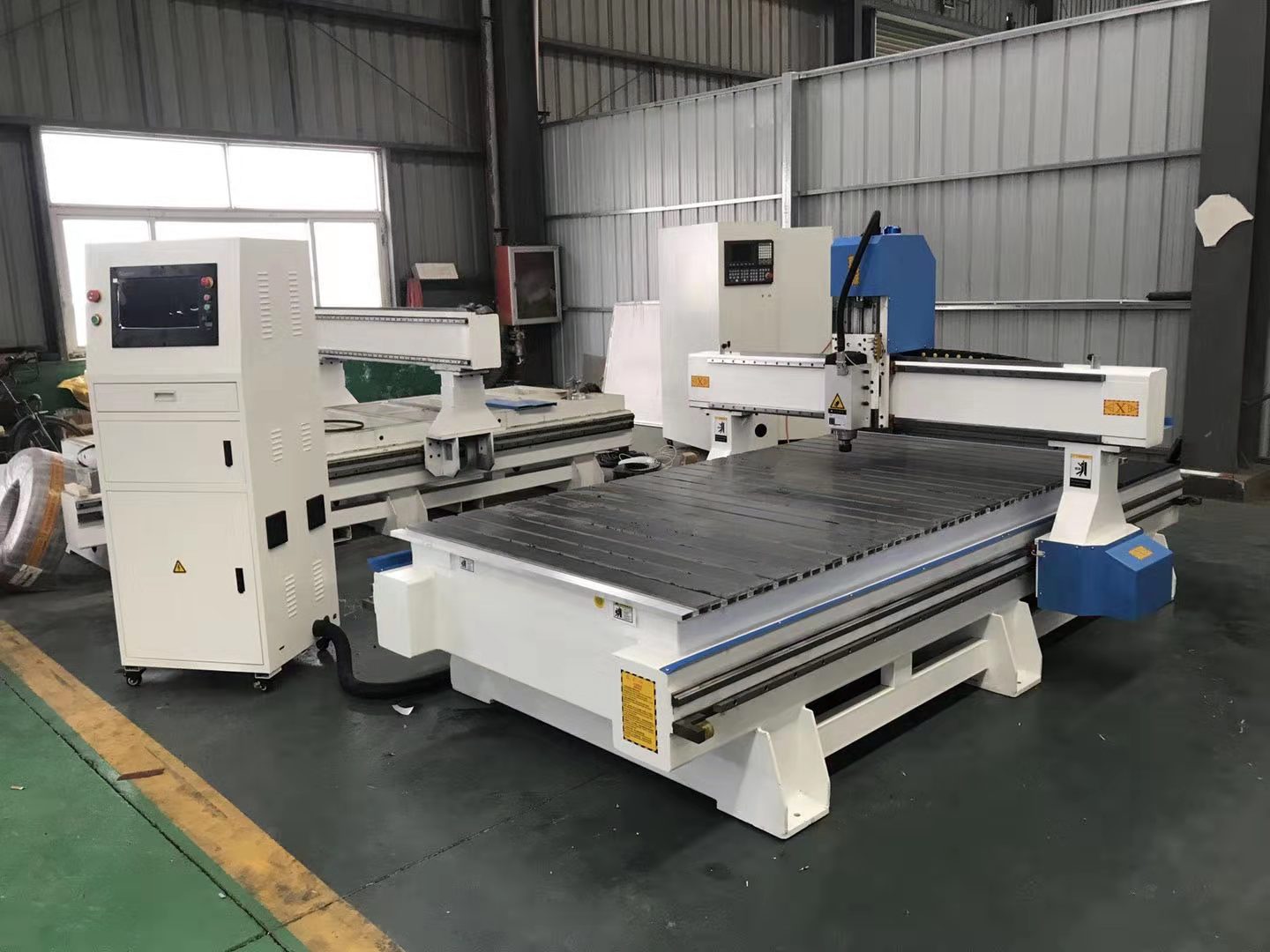

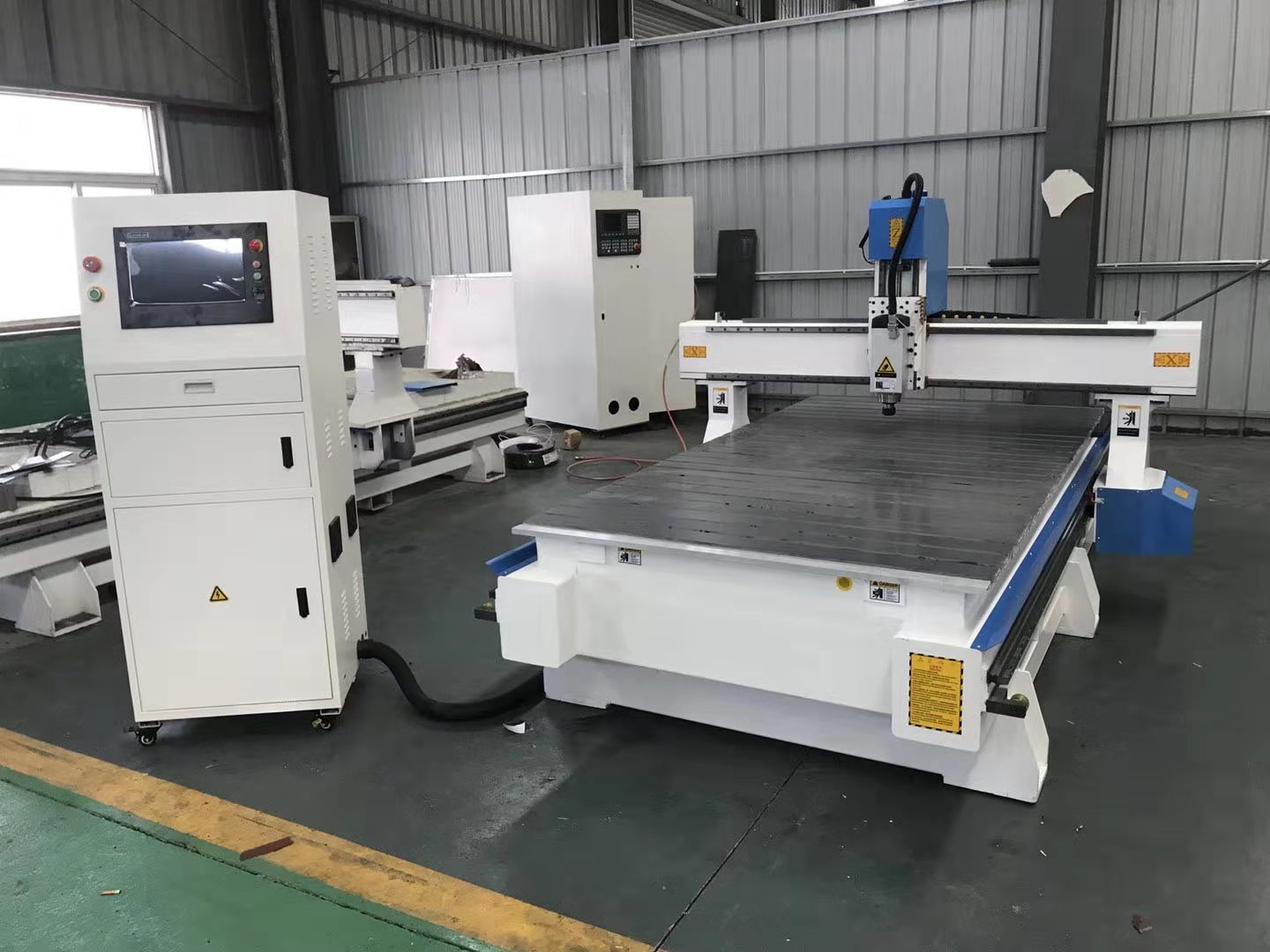

1300*2500 wood cutter with vacuum table for engraving and cutting

Product Description

1212 wooden furniture engraving CNC router for pcb drilling -----------we are directly supply from factory 1.High temperature tempering treatment, welded steel tubeT type machine bed and T type gantry, high rigidity, bearing strength better. 2.Dual motor driver for Y-axis, moving stably. 3.Linear round guide rail, ensuring the higher precision and long life time. 4.WHD/HQD water cooling spindle, more powerful, low noise, not easy to break cutters. 5.Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision. 6.Intelligent protecting the working table, to prevent the damage by wrong operation. Also can prevent the crush caused by the design working area larger than actual working area. 7. Emergency stop button, ensuring the operation safe. 8.Good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam, JDpaint, such CAD/CAM design software. 9.Break points,power off memory way,ensuring the memory function,can continue processing if cutters break or next day working.                             Main Configurations                        Leadshine Stepper Motor&Dravers     Uacuum Adsorption Table                              Fuling Inverter                                      NCstudio Control System         Taiwan Hiwin Guide Rail In X,Y Axis  Hiwin Gear Rack In X,Y Axis     Taiwan TBI Ball Screw In Z Axis   France Schnelder Electrical Parts Features

X,Y,Z Working Area

1300*2500*200mm/1500*3000*200mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z repositioning Positioning Accuracy

±0.02mm

Spindle

WHD/HQD water cooling spindle

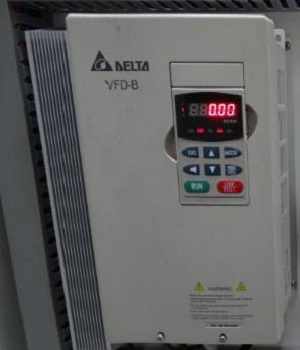

Inverter Fuling/Best Inverter

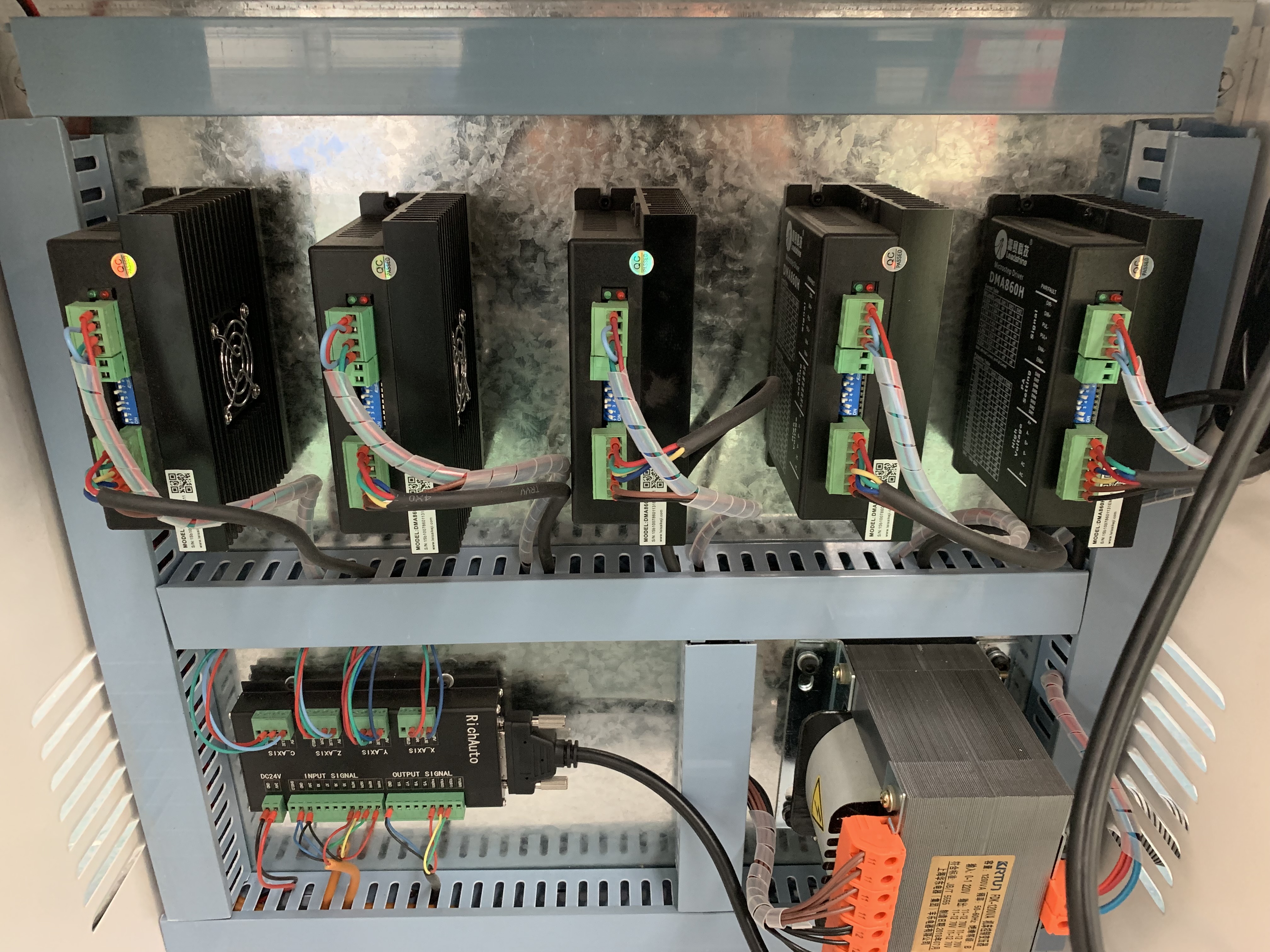

Driver Leadshine motor
Motor Leadshine stepper
X,Y transmission

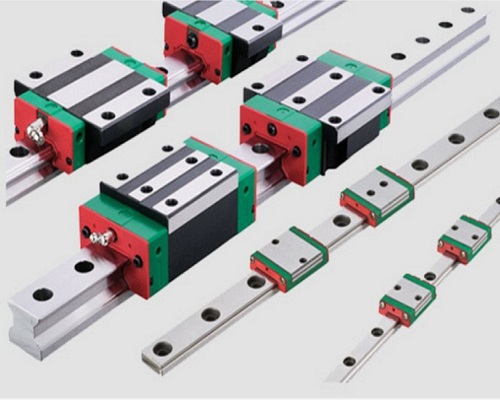

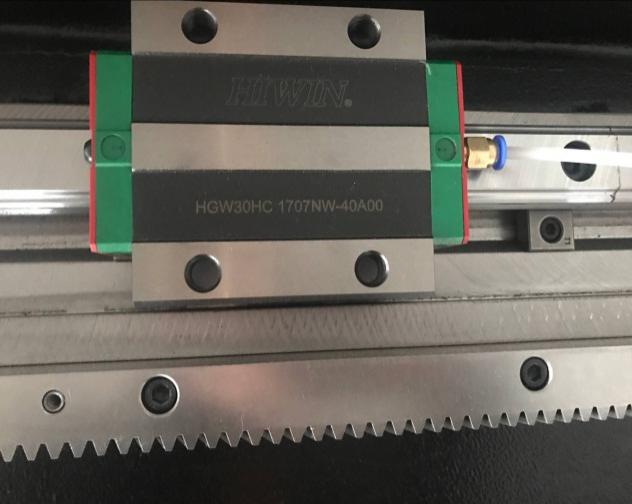

Taiwan Hiwin Square Rail+gear rack in X,Y

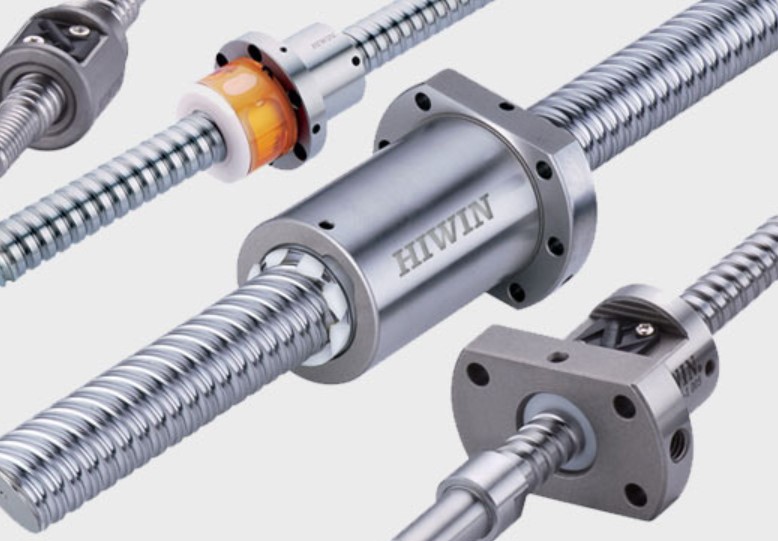

Z asis ball screw

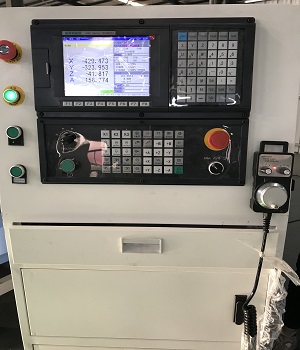

Control system NC-studio control system/DSP control system

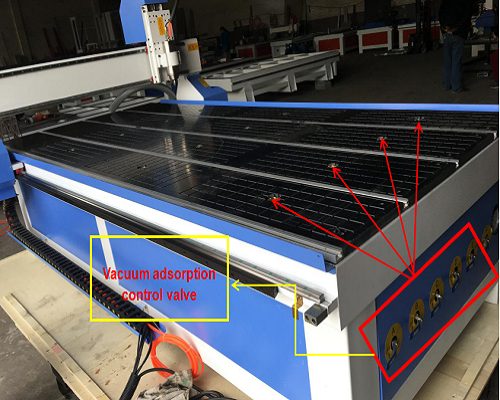

Working table Pvc+T-solt table/Vacuum adsorption table
Software  Artcam software

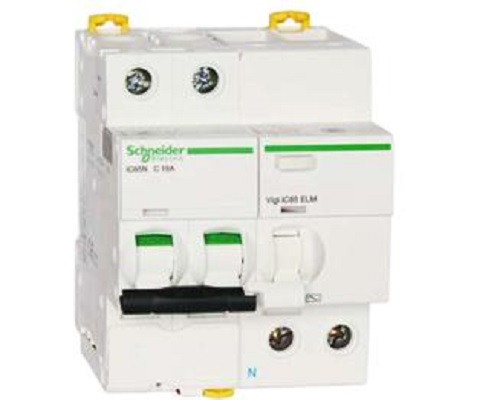

Electrical parts France schnelder electrical parts
Oil Hand oil

Max.Rapid Travel Rate

60000mm/min

Max. Working Speed

Max. Working Speed

Spindle Speed

0-24000RPM

Command Language

G code

Interface

USB
Working Voltage AC380V/50/60Hz,3PH (Option: 220V)

Gross Weight

1400KG
Packing size 3650*2280*2050
                                                        Samples              cooperative partner   FAQ   1) How can I get the best machine of cnc Laser Marking Machine for me?  You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not.Then we can give you the best model. 2) This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it,we can help you by Teamviewer online help software. Or we can talk by phone,email or other contact ways. 3) If the machine has problem in my place, how could I do?  We could send free parts to you in warranty period if machines have any problem under "normal use"  4) This model is not suitable for me, do you have more models available? Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on. Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us.We have the ability to make specially according your requirement! 5) How about the documents after shipment of cnc laser marking machine? For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30  days. 6) Do You Arrange Shipment For The Machines? Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents. 7) :How is the packing of cnc machine?  Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading.   Contact Information JINAN VMADE CNC EQUIPMENT CO.,LTD ---------------------------------------------------------- Ethan Li Phone / Whatsapp : +86-15634057897 Wechat : 15634057897 Email : sale10(@)vmadecnc.com   Thanks for your attention!

Contact us if you need more details on 1300*2500 wood cnc router. We are ready to answer your questions on packaging, logistics, certification or any other aspects about cnc router with vacuum table、1325 wood cnc router engraving and cutting. If these products fail to match your need, please contact us and we would like to provide relevant information.
