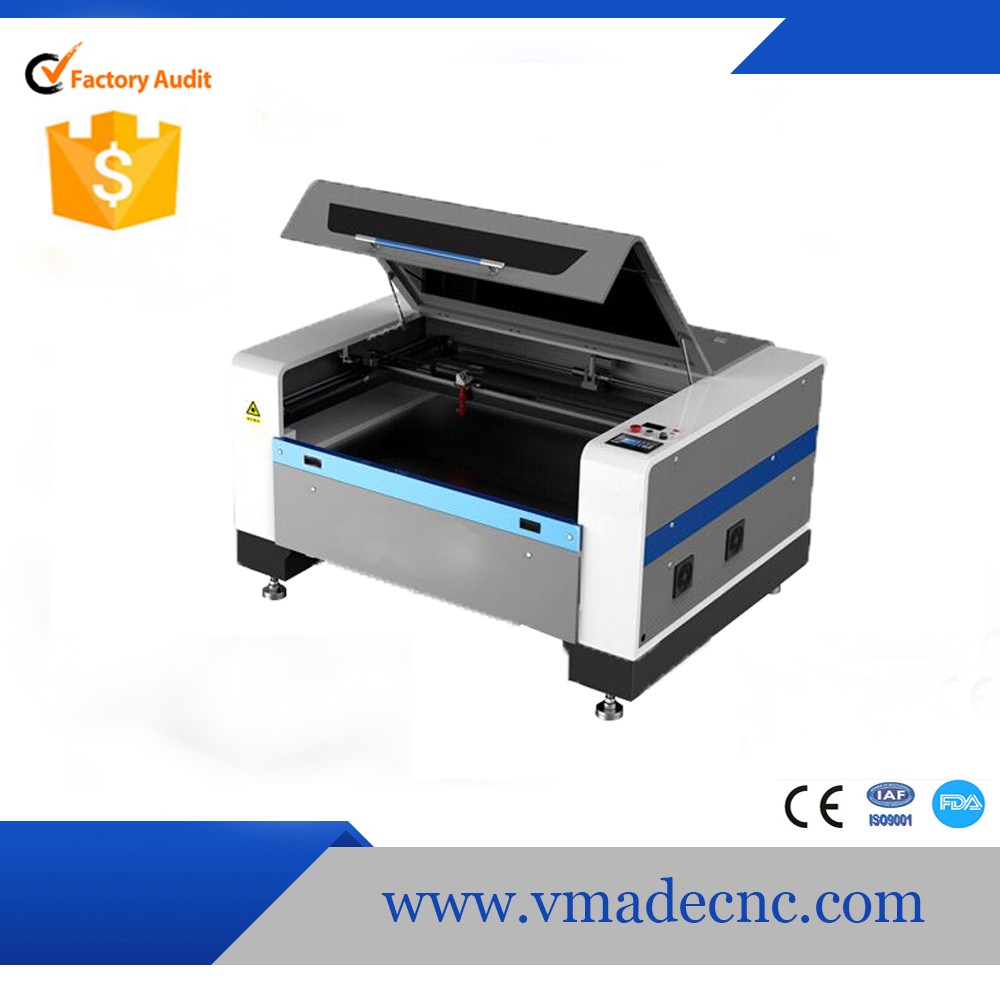

DXF,BMP,DST,DWG,AI,PLT,DXP,LAS Graphic Format Supported and Yes CNC or Not laser engraving machine

Product Description

Related Products
metal and non metal cutting machine        co2 laser  cutting machine

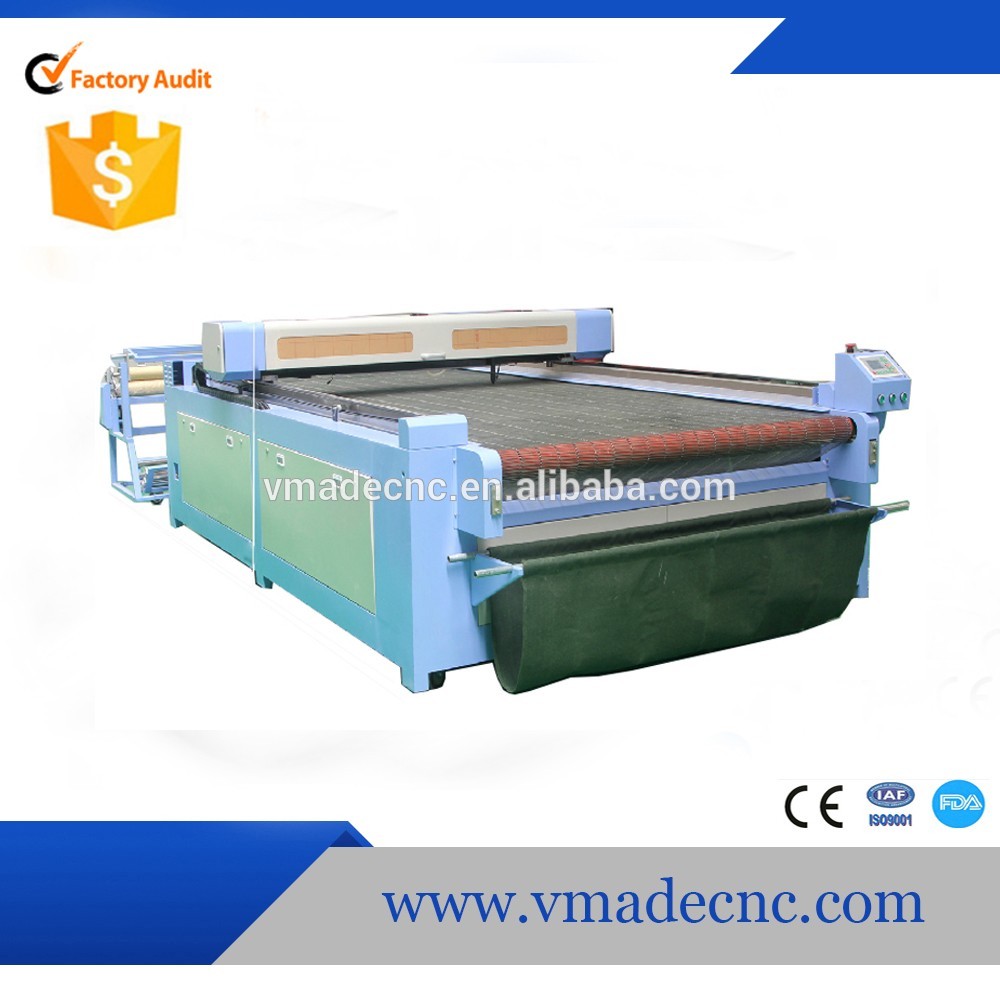

   Auto feedig laser cutting machine



Product Description                         DXF,BMP,DST,DWG,AI,PLT,DXP,LAS Graphic Format Supported and Yes CNC or Not laser engraving machine Woking size : 1309 (1300*900mm); 1610(1600*1000mm) Laser power : 60W 80W 100W 150W Main Features  1.Taiwan HIWIN square linear guide rail installed on X&Y axis, make sure the works stably and precisely  2.The professional manufacturers adopts square tube framework in China, with more than 40% higher fuselage strength  than iron sheet structure. This design prevents the machine from quivering, resonance and distortion during long term work.  3. New-style high-efficiency laser tube is adopted. Laser beam is more stable than the traditional type. Usage age is more than 10000 hours.  4.Red dot position system is added in standard configuration,contributing to simple and precise wprking position.  5.USB offline control system makes the operation more convenient and faster..  6.Automatic up-down table can be chosen for thick materials and high objects. Applicable materials and industry   7.Suitable for acrylic, wood, wood, paulownia), double color board, ABS board, rubber, plastic, glass non-metallic hard materials, such as sculpture, cutting.  8.Suitable for mould (construction mould, aviation navigation mould, wooden mold) advertising, decoration, craft gifts, electronic appliances and other industries.   pictures of the machine parts    Technical Parameter:

Model

VML1309X(H)2H(M)

VML1610X(H)2H(M)

VML1812X(H)2H(M)

Working Area

1300*900mm

1600*1000mm

1800*1200mm

Laser Power

60w/80w/100w/130w//150w

Laser Type

CO2 Sealed Laser Tube,10.6μm

Cooling Type

Water Cooling

Engraving Speed

0-60000mm/min

Cutting Speed

0-40000mm/min

Laser Output Control

0-100% Set by Software

Min.Engraving Size

Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm

Highest Scanning Precision

4000DPI

Locating Accuracy

≤+0.01mm

Controlling Software

DSP Control System

Graphic Format Supported

DST PLT BMP DXF DWG AI LAS,etc

Compatible Software

CORELDRAW,PHOTOSHOP,AUTOCAD,TAJIMA,etc.

Color Separation

Yes

Drive System

High-precision 3-phase Stepper Motor

Auxiliary Equipments

Exhaust Fan and Air Exhaust Pipe

Power Supply

AC110V/220V+10%,50HZ/60HZ

Working Environment

Temperature:0-45C,Humidity5-95%(No Condensate Water)

samples       Our Services after sale service : 1.2years quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.       2.Lifetime maintenance free of charge.                    3.Free training course at our plant.                 4.We will provide the consumable parts at an agency price when you need replacement. 5.24 hours on line service each day, free technical support.        6.Machine has been adjusted before delivery 7.Our staff can be sent to your company to install or adjust if necessary. Company Information Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in hightech zone, Jinan City, Shandong  Province of China.  It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate and attentive attitude on every step and always keep to learn the most advanced technology and create more humanized products to all our customers. Certifications   Packaging contact us   If you are intersted in this machine , please don't hesitate to contact with us ! More detail (working video and samples will be supplied)

Contact us if you need more details on laser engraving and cutting machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about co2 laser engraving machine、laser engraving and cutting machine. If these products fail to match your need, please contact us and we would like to provide relevant information.
