Product Description 60w / 80w / 100w / 120w / 150w co2 laser engraving cutting machine spare parts Main Features 1. Single and double laser tube, working exchange freely according to customer is working inquiry. Improve working efficiency.
2. Each laser head reaches to total working size. Free setting up distance between two laser head.
Technical Parameter Select the laser power according to material thickness
|Tube Power ||Acrylic Cutting ||Wood Cutting || |
|60w ||8mm ||6mm ||2mm ||0.5mm |
|80w ||15mm ||10mm ||4mm ||1mm |
|100w ||20mm ||12mm ||6mm ||2mm |
|Z2( rated power 90W,Max power 100W) ||20mm ||12mm ||6mm ||2mm |
|Z4( rated power 120W,Max power 135W) ||25-30mm ||16mm ||10mm ||2.5mm |
|Z6( rated power 150W,Max power 170W) ||30-35mm ||22mm ||14mm ||3mm |
|Z8( rated power 170W,Max power 200W) ||35-40mm ||24mm ||16mm ||4mm |
Check which model working size is suitable for you
|Model ||VLC1006 ||VLC1390 ||VLC1410 ||VLC1610 ||VLC1812 |
|Working Area ||1000*600mm ||1300*900mm ||1400*1000mm ||1600*1000mm ||1800*1200mm |
|Laser Power || 60W,80W ,100W,135W,170W,200W |
|Laser Type ||CO2 |
|Cooling Type ||Water Cooling |
|Locating Precision ||≤+0.01mm |
|Controlling Software ||LASERWORK Offline (Power and speed can be adjusted in working process) |
|Graphic Format Supported ||DST PLT BMP DXF DWG AI LAS,etc |
|Compatible Software ||TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc |
|Color Separation ||Up to 20color-linked speed settings per job |
|Auxiliary Equipments ||Exhaust Fan and Air Exhaust Pipe |
|Power Supply ||AC110V/220V+10%,50HZ/60HZ |
|Working Environment ||Temperature:0-45°C,Humidity 5-95%(No Condensate Water) |
|Motorized Up Down Working Table ||Optional Parts |
|Rotary Device ||Optional Parts (Diameter:60mm) |

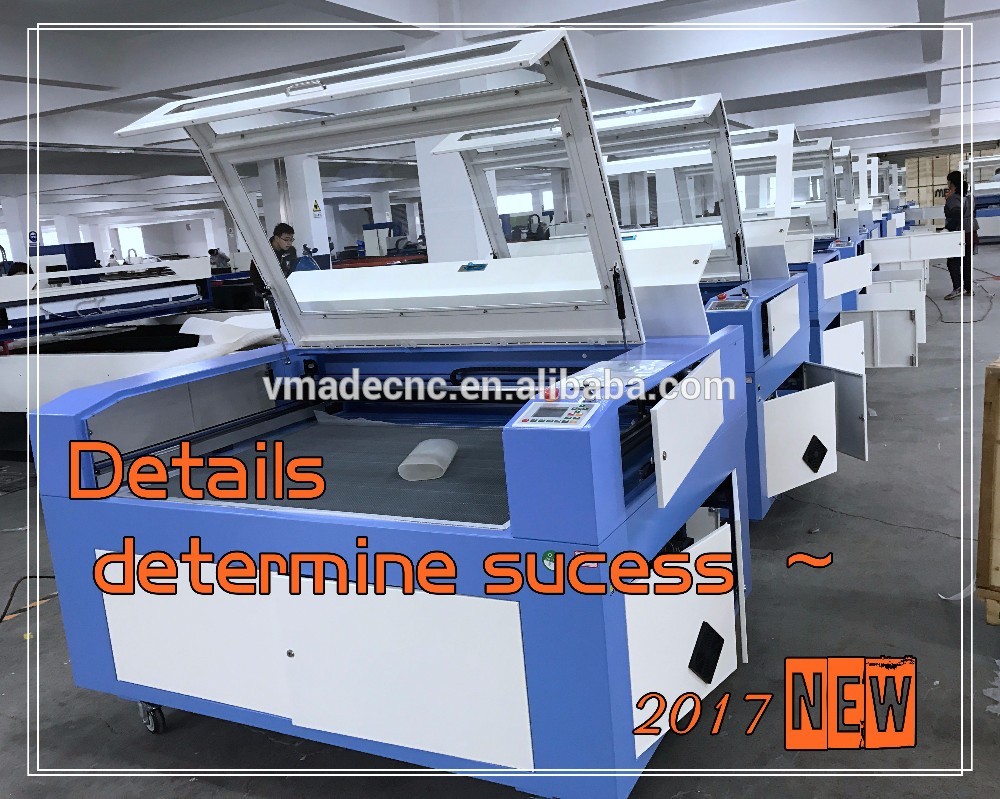

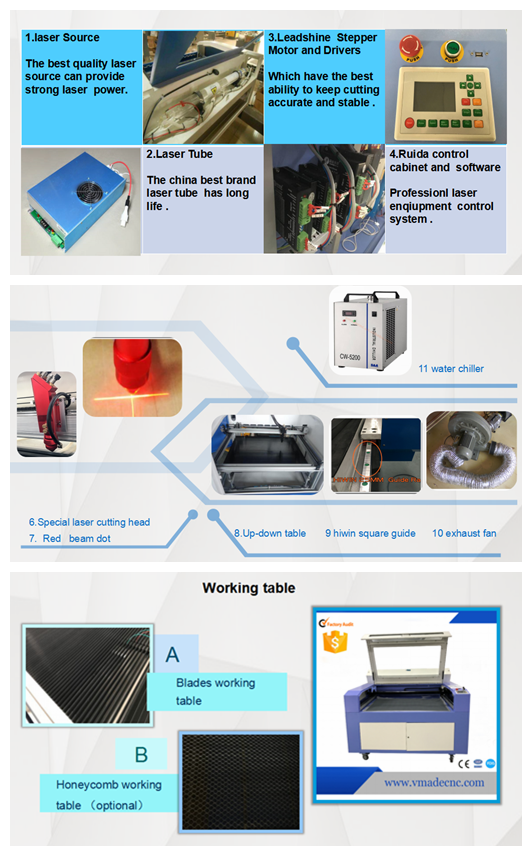

Some details picture of the machine :

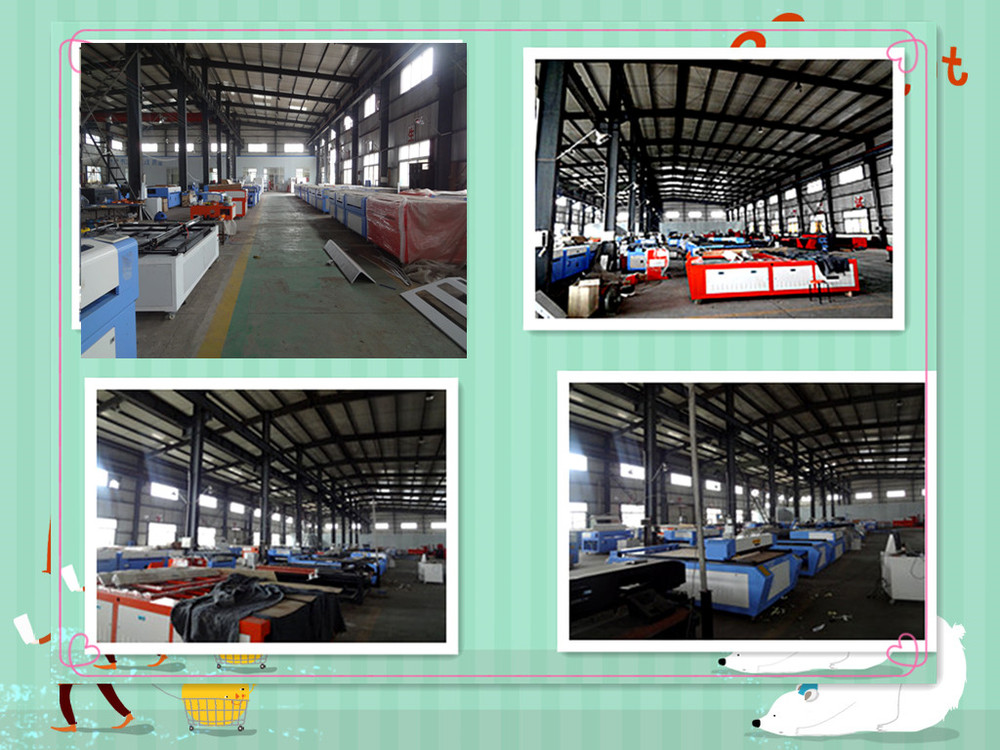

Company Information Jinan VMADE CNC Machine Co.,Ltd was founded in 2007. For 8 years, Vmade laser has always been devoted in studying and manufacturing laser cutting, engraving and marking etc. With all VMADE staffs' persistence and hard worke, VMADE laser has developed to a large-scale international manufacturing company.

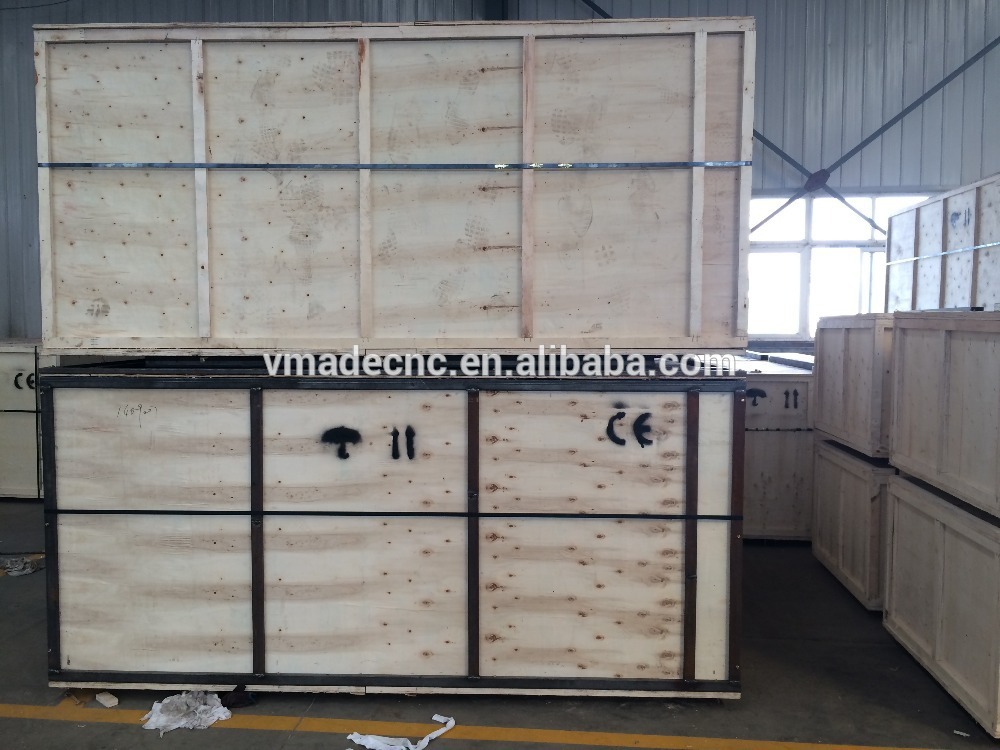

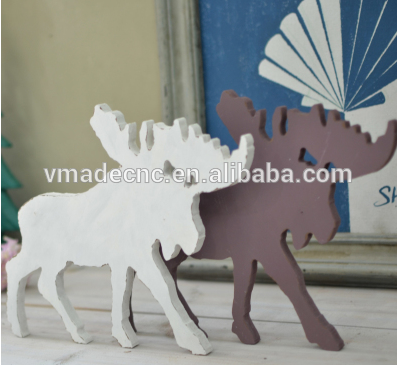

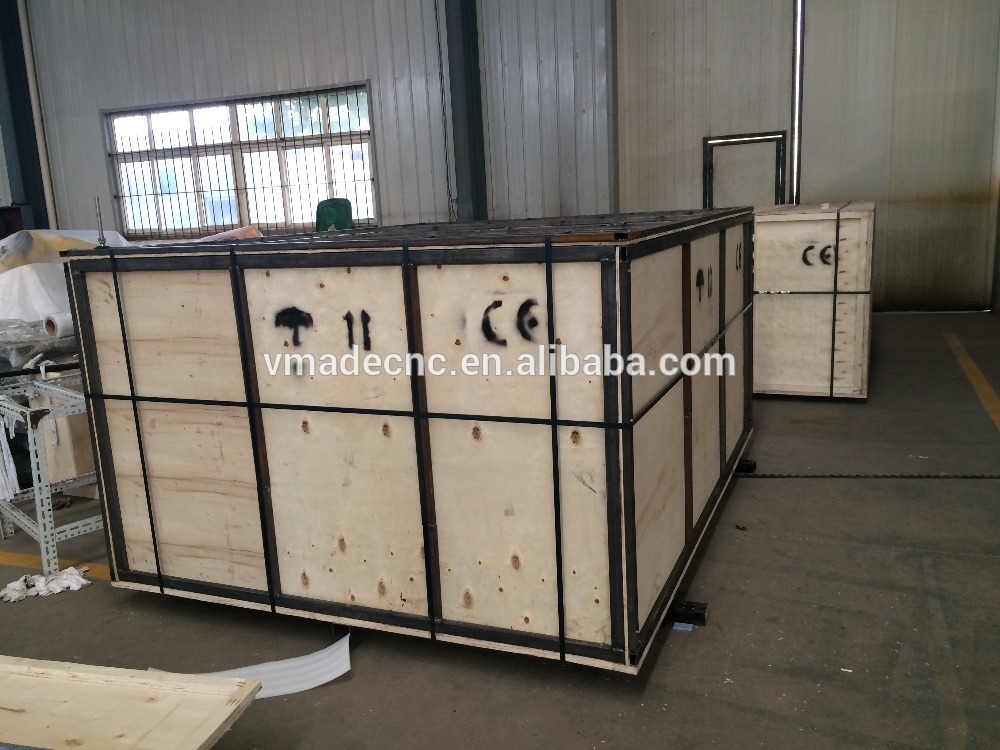

Contact us if you need more details on 60w \/ 80w \/ 100w \/ 120w \/ 150w co2 laser engraving cutting machine spare parts. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Christmas gift by co2 laser cutting machine、china laser engraver 80w\/100w\/150w. If these products fail to match your need, please contact us and we would like to provide relevant information.
