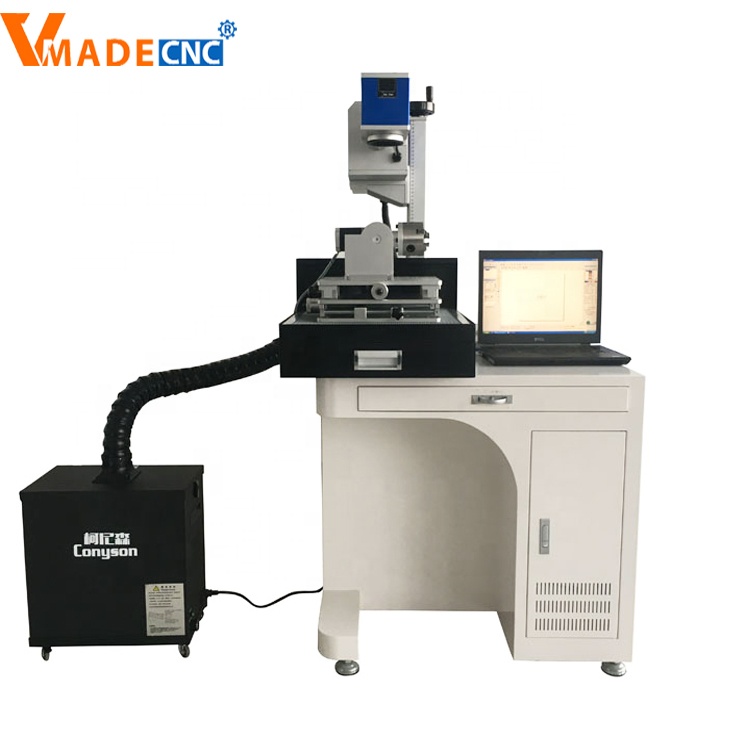

CNC Desktop CO2 Laser Marking Machine
The DF series CO2 Laser Marking Machine

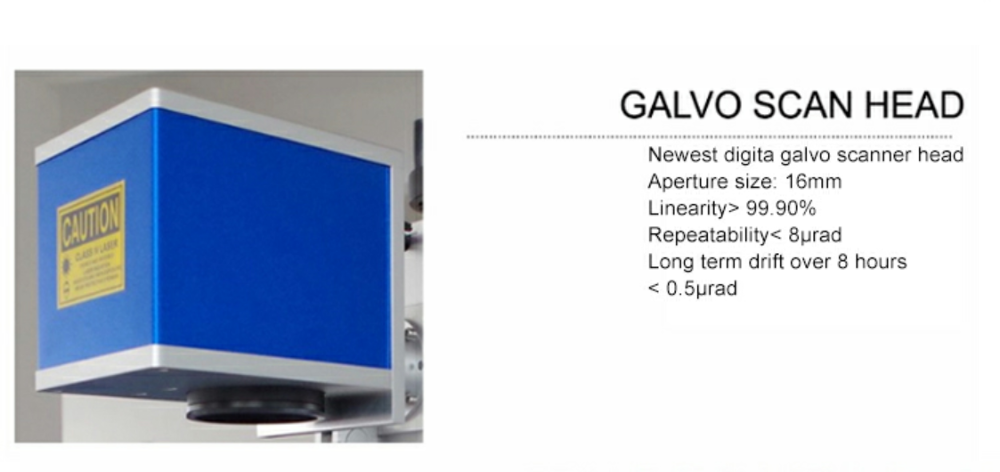

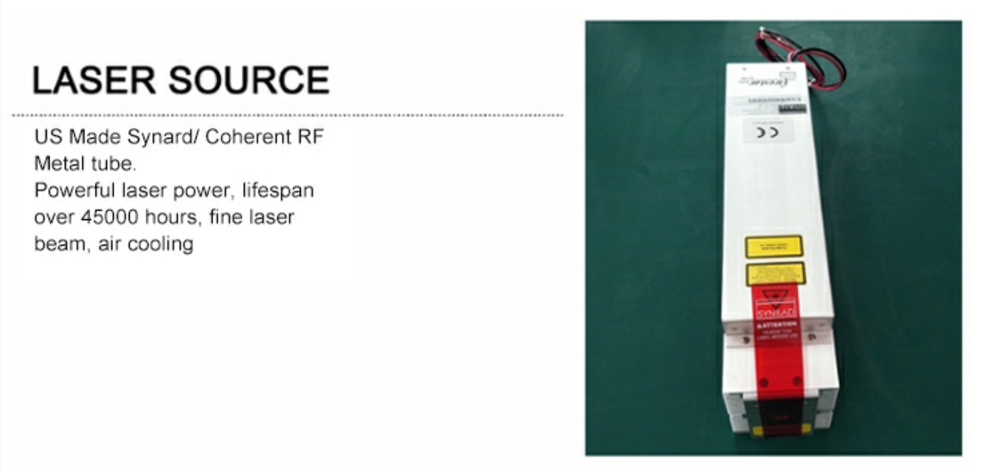

is equipped with a made-in-China radio frequency laser (metal seal) or a glass laser tube, a fast-speed scanning system with vibrating mirrors and its control system. The CO2 laser marking machine is specially developed for the industries like apparel, leather, artwork and craft and so on to cut and engrave fast on various non-metal materials so as to double the added-value of original products APPlicable Materials:

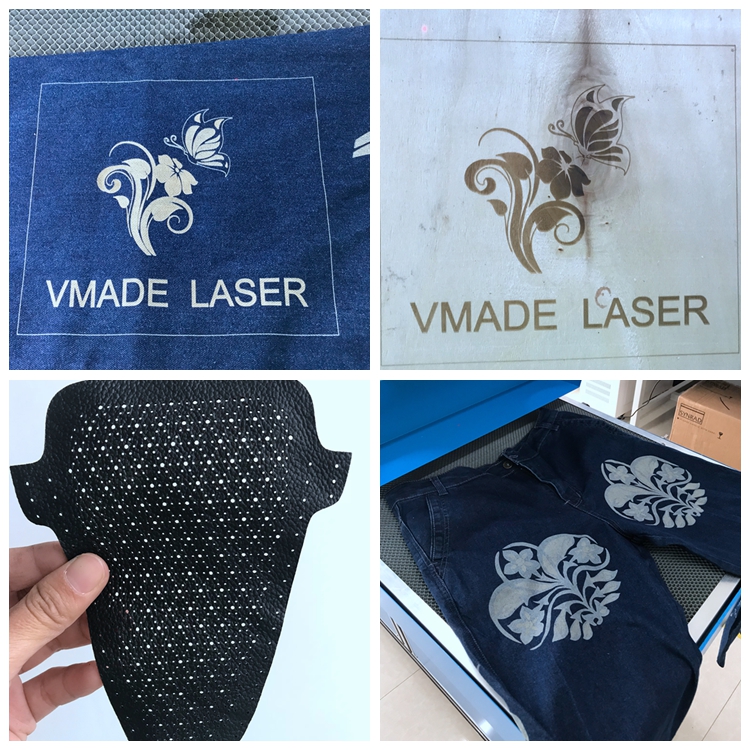

Suitable for wood,paper,leather,cloth,plexiglass,epoxy,acrylic,unsaturated polyester resin and other non-metal materials.
Widely used in leather, food, beverage, cloth, electronic, meter, communication instruments, package and other industries, can be combined with streamline for online marking. Features 1.High reliability,long continuous operation time,clear and complete printing.

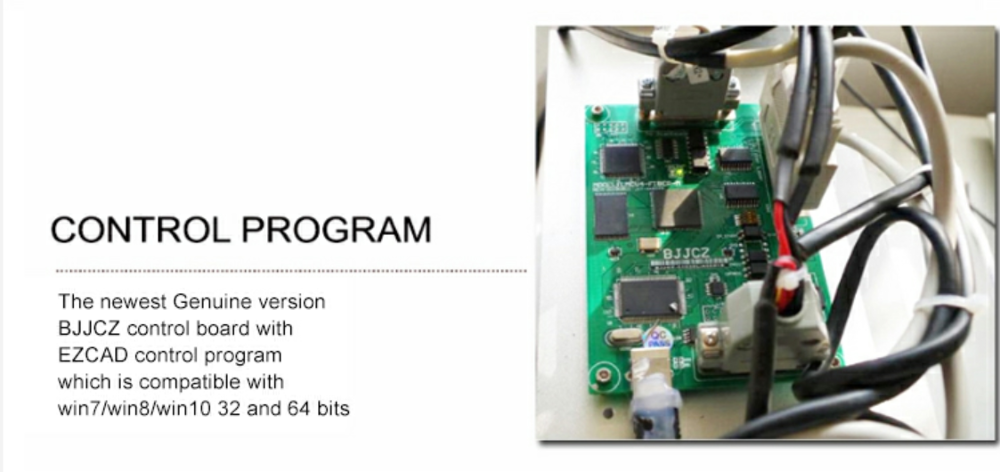

2.Supported by rich software.enable to collect and manufacture various labels,non-contact processing.
3.Ensure original precision of the surface of work piece to the max limit.
4.Suitable for engraving on various materials.long time preserve.simple installation and convenient.
5.The optical system is fully sealed,it can prevent the dust entering laser body and reduce the equipment failure rate.
|Model number ||CO2 laser marking machine |
|Laser power ||30W/60W/80W/100W/150W |
|Maximum speed ||7000mm/s |
|Graphics formats ||PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO.DXF |
|Quality oflight plate ||M2<2 |
|Power stability ||(8h)<+-1% rms |
|Pulse repetition frequency ||20KHZ-60KHZ |
|Power ||<800w |
|Minimum line width ||0.01mm |
|Minimum character ||0.4mm |
|Laser wavelength ||10.6um/10.2um |
|Marking size ||100x100/175x175/300x300mm |
|Cooling method ||Air coolingWorking voltage |
|Working voltage ||110/220v+-10%,50/60HZ |
FAQ Q1: Trade company or Manufacturer? we are manufacturer, warmly welcome to visit our factory. Q2:Is it easy to operate for the new user? It is very easy to operate. we offer you operating video for english language, also our technician can help you via Skype, Whatsapp, Email and calling etc, they can speak good english. Q3:Is there any other model for choose? Yes, you can choose other model as your requirement or send your detail requirement, then we will recommend most suitable model for you. Q4:I knew nothing about machine, How can I get the best one for me? Pls you tell us your working material, detail work by picture or video so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience. Q5:How about the payment terms? General we use 100% T/T,30 % T/T in advance+70%T/T after check video and pictures before shipment. Q6:How about the shipment terms? FOB QINGDAO is our port, if you like CIF to your port ,it is ok ,Kindly tell me which port is convenient for you ? and you can use your forwarder also . Q7:How about the After-sale service? we provide 3-year warranty, Engineers available to service machinery overseas and English manual. Contact Information JINAN VMADE CNC EQUIPMENT CO.,LTD ---------------------------------------------------------- Ethan Li Phone / Whatsapp : 0086-15634057897 Wechat : 15634057897 Email : sale10(@)vmadecnc.com
