10W 20W 30W 50W Co2 Laser Marking Machine For Wood

Product Description

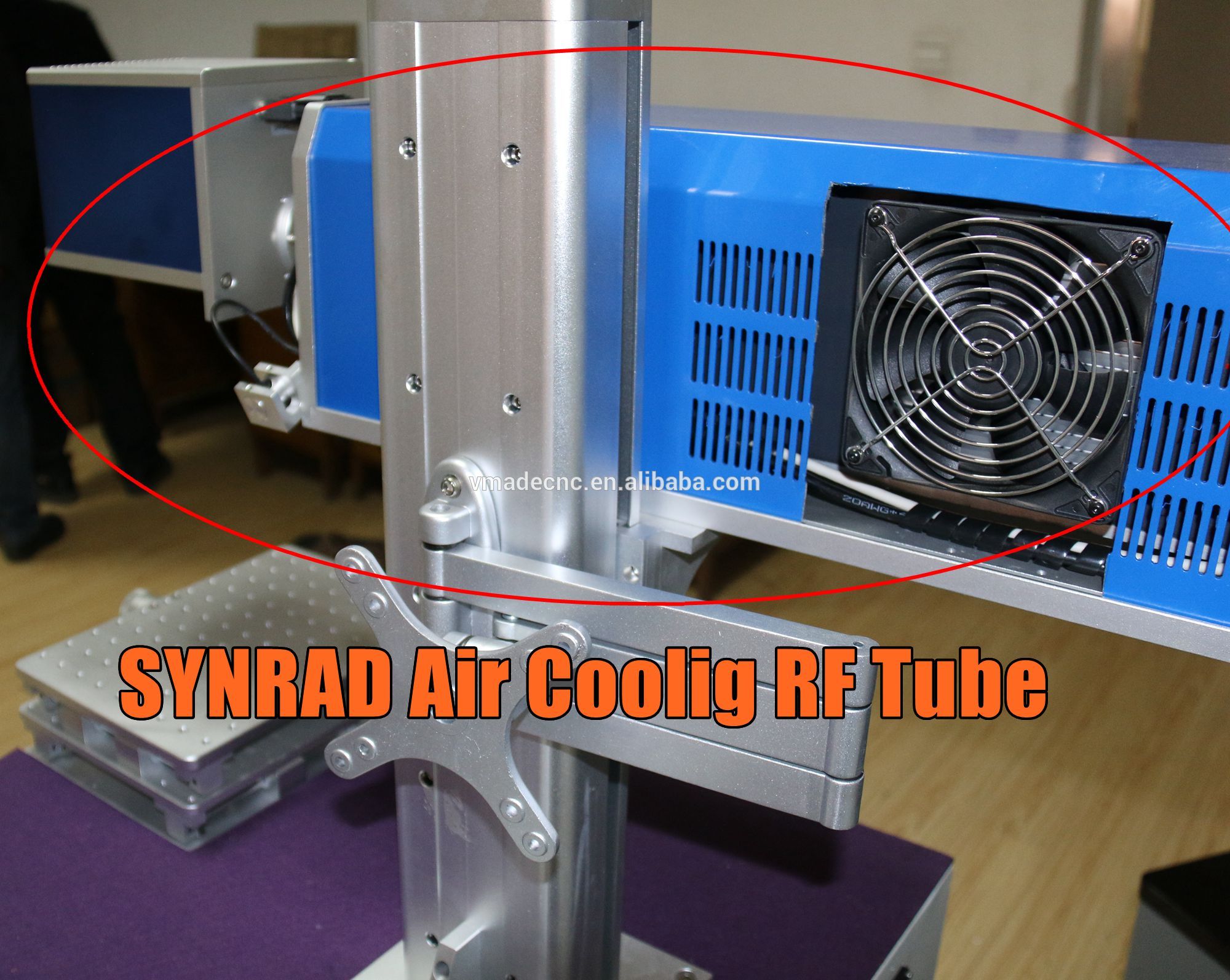

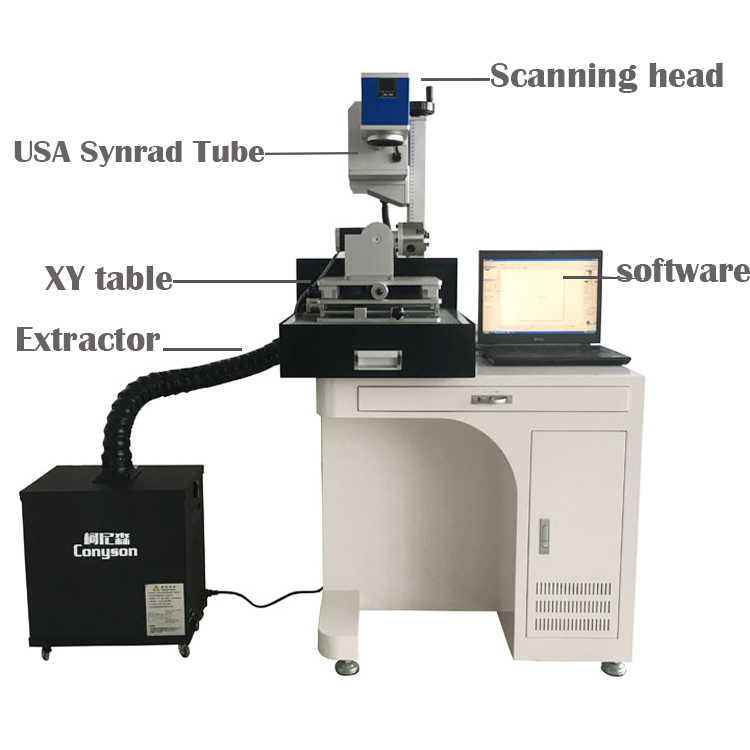

MASS_APP4_949_BEGIN MASS_APP4_949_END Product Description  Wood acrylic Leather SYNRAD RF Laser  30w 60w Co2 RF                                  Laser Marking Machine   Desktop Co2 Laser           Main features                                                                                                                    1. High precision and speed. Marking depth can be controlled easily. Continue working
no need maintenance. 2. VML-CG economic design with glass CO2 tube .High power big working site with lower price.
3. Industry computer, strong anti-interference and adaptation stable working position for 24 working. 4. Industry computer, strong anti-interference and adaptation stable working position for 24 working.
5. Red position system avoids material waste.
6. Multi-function software with friendly interface support win7/xp/2000 together with many languages version.  Supporting True Type font and single line font JSP, DMF, One-dimensional code and VIN code. 7. supporting bmp, jpg, gif, tga, png, tif file together with ai, dxf, dst, plt. Work on 256 level gray image.
Image processing for gray conversion, black white conversion and dot.   8. Free control system and outside equipment.   Technical Parameter

Model

 VLM Series

VLMG Series

 VLM-30 / VLM-55

VLMG50/VLMG60/

VLMG80/VLMG100

Laser Power

 30W/55W/100W/

 150WRF Tube

50W/60W/80W/100WGlass Tube

Working Area

 110*110mm/200*200mm/300*300mm

Laser Wavelength

 10.64μm

Response Time

 0.5ms

Frequency of Pulse

 20KHz

Max Marking Depth

 0-6mm

Marking Speed

 0-7000mm/s

Minimum Line Width

 0.1mm

Minimum Character

 0.3mm*0.3mm

Repeatability Accuracy

 ±0.005mm

Resolution Ratio

 0.1mm

Graphic Format Supported

Bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.

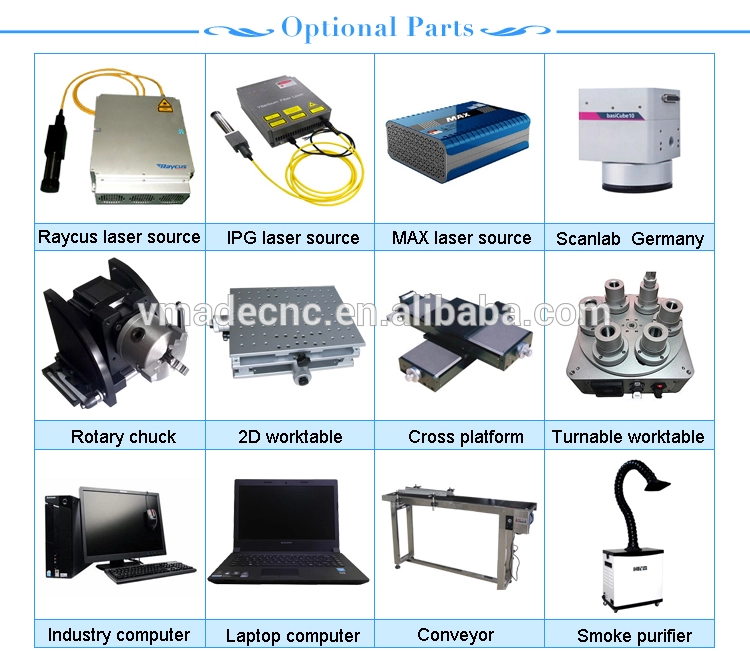

    Optional Device                                                                                                                                            Packaging & Shipping 20 working days for shipment wooden packaging  with  ship and  planes     Company Information Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City,
Shandong Province of China.

It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate  and attentive attitude on every step and always keep to learn the most advanced technology and create more  humanized products to all our customers.     contact details                                  Welcome to visit our factory                  If you have any questions, Please contact us

Contact us if you need more details on Laser Marking Machine On Sale. We are ready to answer your questions on packaging, logistics, certification or any other aspects about CO2 RF Laser marking machine、10W 20W 30W 50W CO2 Laser Marking Machine For Wood. If these products fail to match your need, please contact us and we would like to provide relevant information.
