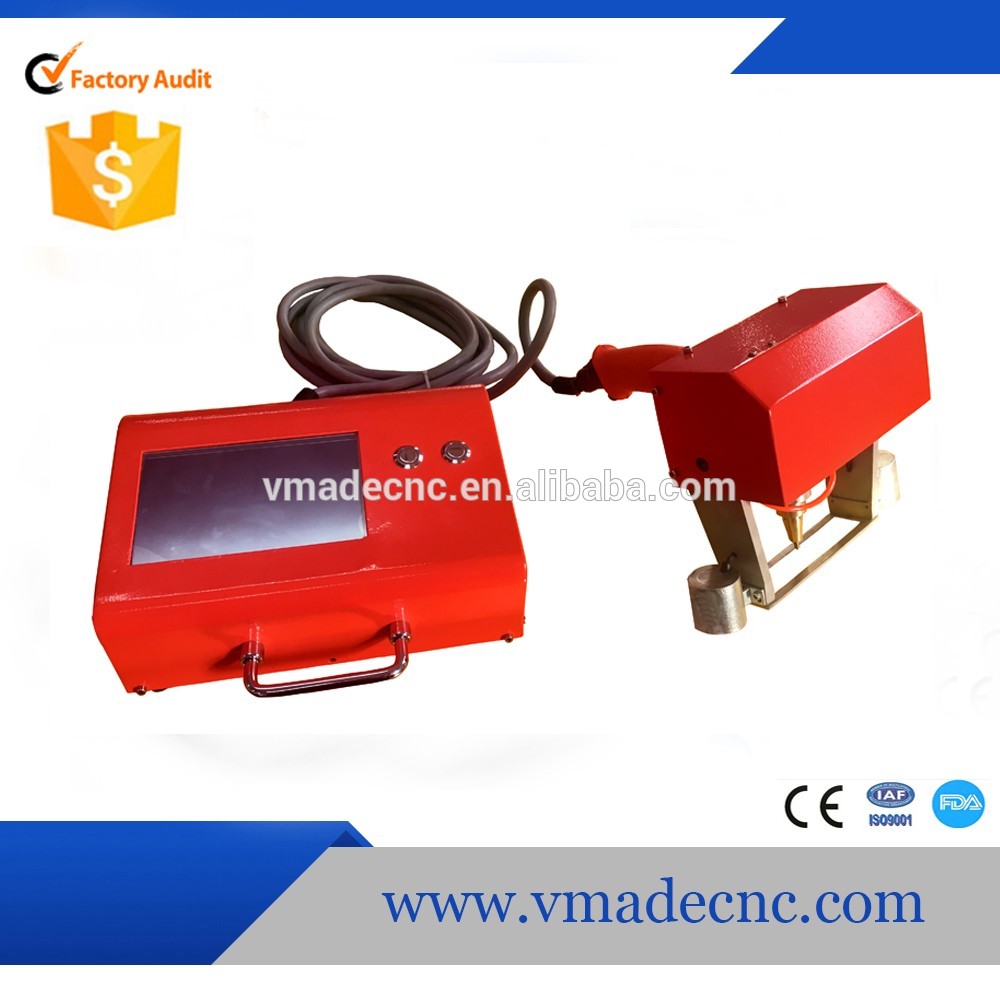

chassis number Portable Handheld Vin Number Dot Peen Marking

Product Description

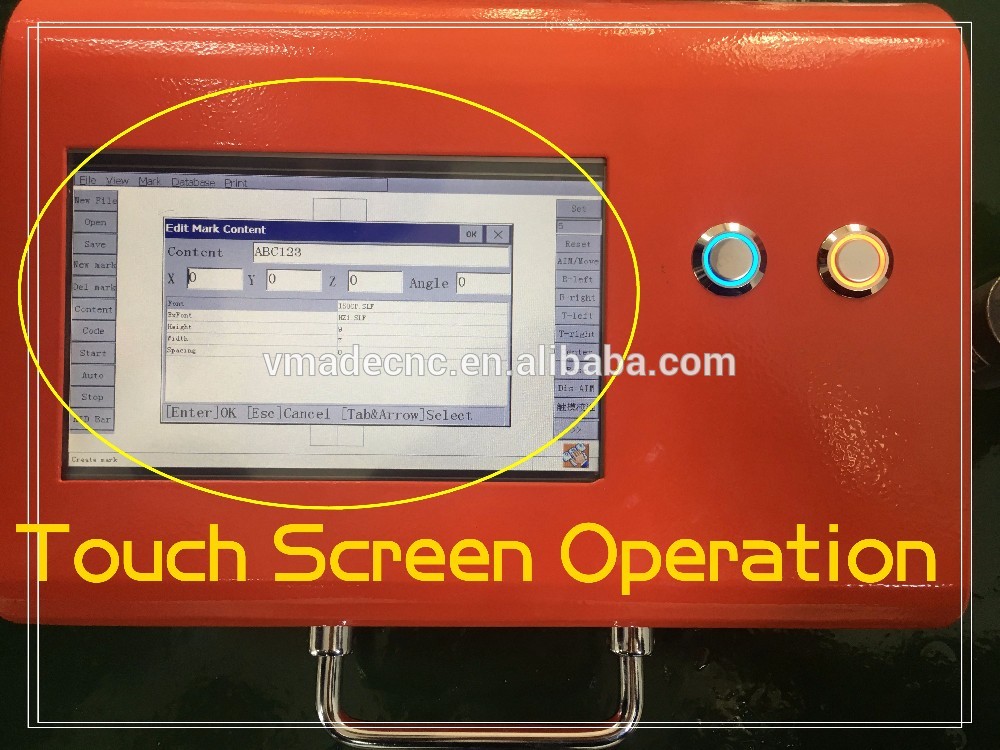

Product Description                                  Dot Peen Marking Machine    Product Description  VMADE Machine Exclusive copyrights for Metal Parts Deep Dot Peen Marking Machine with Touch screen operation  Model: VPM-10P/20P
Applications: Used for marking large-sized workpieces or immovable parts and components on site.
Main Features:

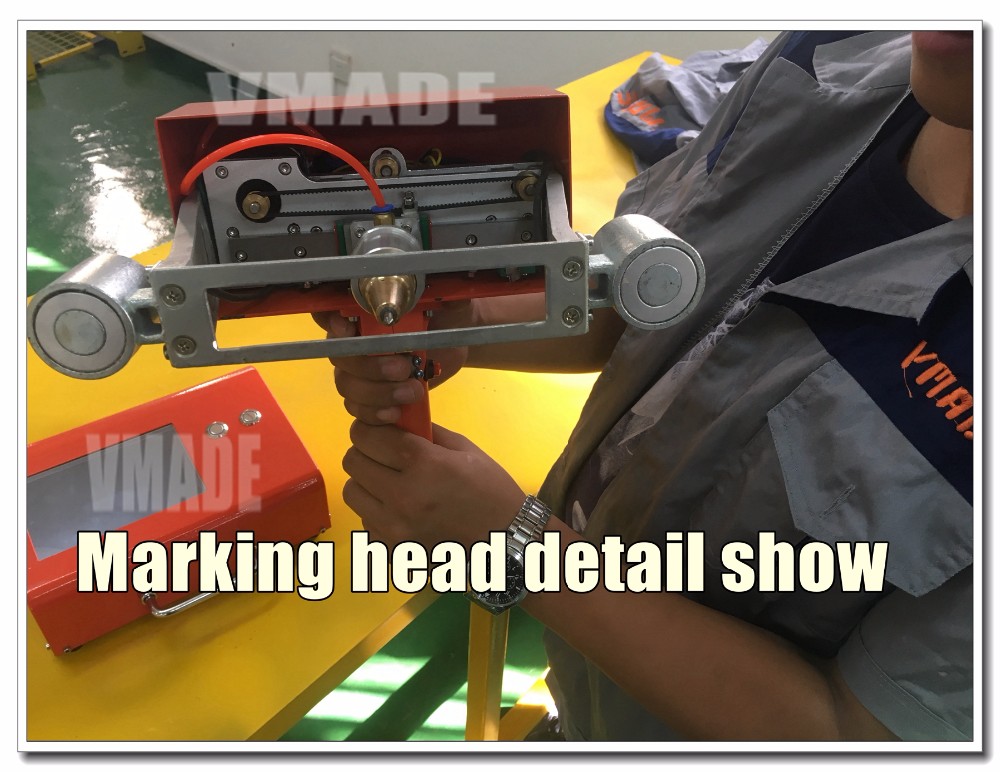

Provided with a lightweight marking head, it is easy to carry for mobile use. Used for printing any character or graphic in large-sized components made of various materials. Fitted with a two-dimensional table which is die casted with precision molds, linear rolling guide rails, and self-enclosed and self-lubricating bearings, thus ensuring highly consistent performance. Employ control software based on WINDOWS operating systems, which enables the automatic printing of serial numbers. It is an ideal machine for marking frames, signs, large-sized or immovable workpieces. Parameter List:

 Weight

 <20 kg (with solenoid)

 Power

 <300 W (with solenoid)

Impact Resistance

 0-25 kg

 Operating Temperature

 -10-40 ℃

Operating Humidity

 0-90% (non-condensing)

 Air Pressure

 0.3-0.7 Mpa

 Marking Depth

0-0.8 mm

(adjustable depending on materials)

 Marking Speed

 5-120 characters/min

 Marking Mode

 Pneumatic Printing

 Marking Range

 VPM-20P:120*20 mm

 VPM-10P:80*20 mm

 Marking Types

 Numbers, English Letters, Common Symbols, Chinese Characters

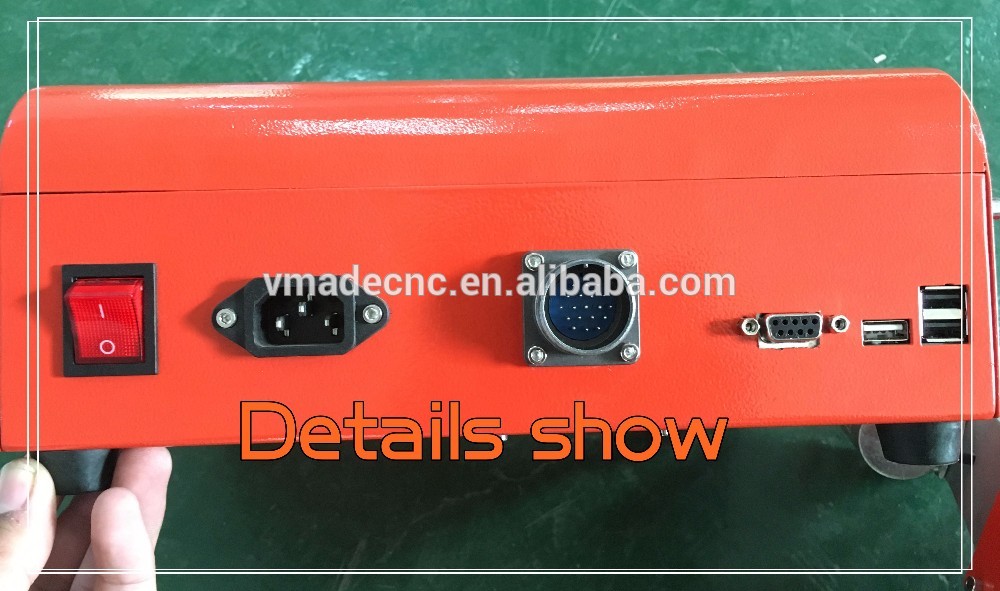

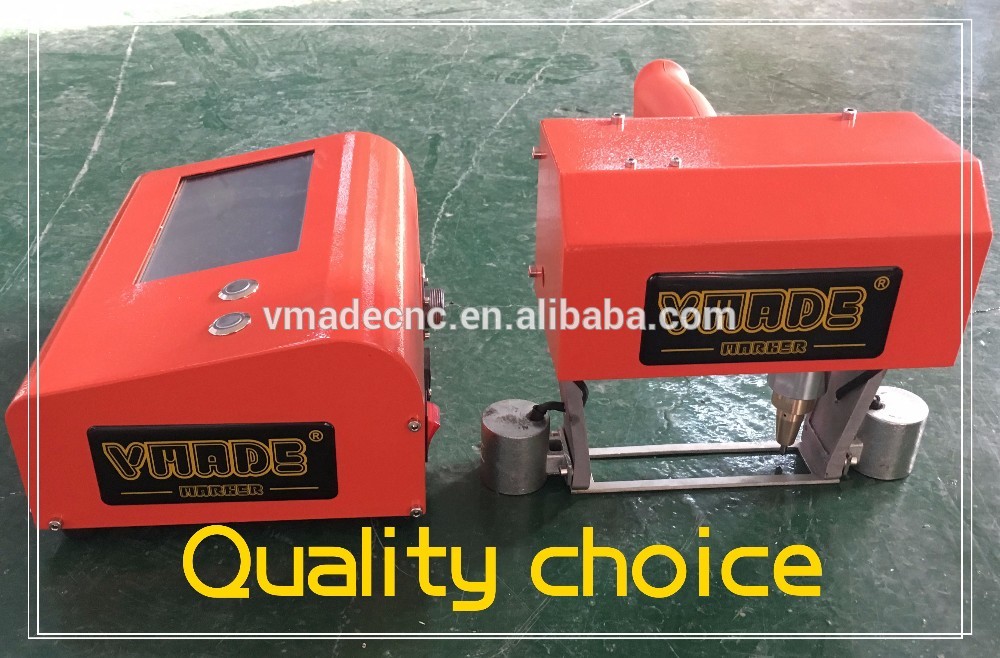

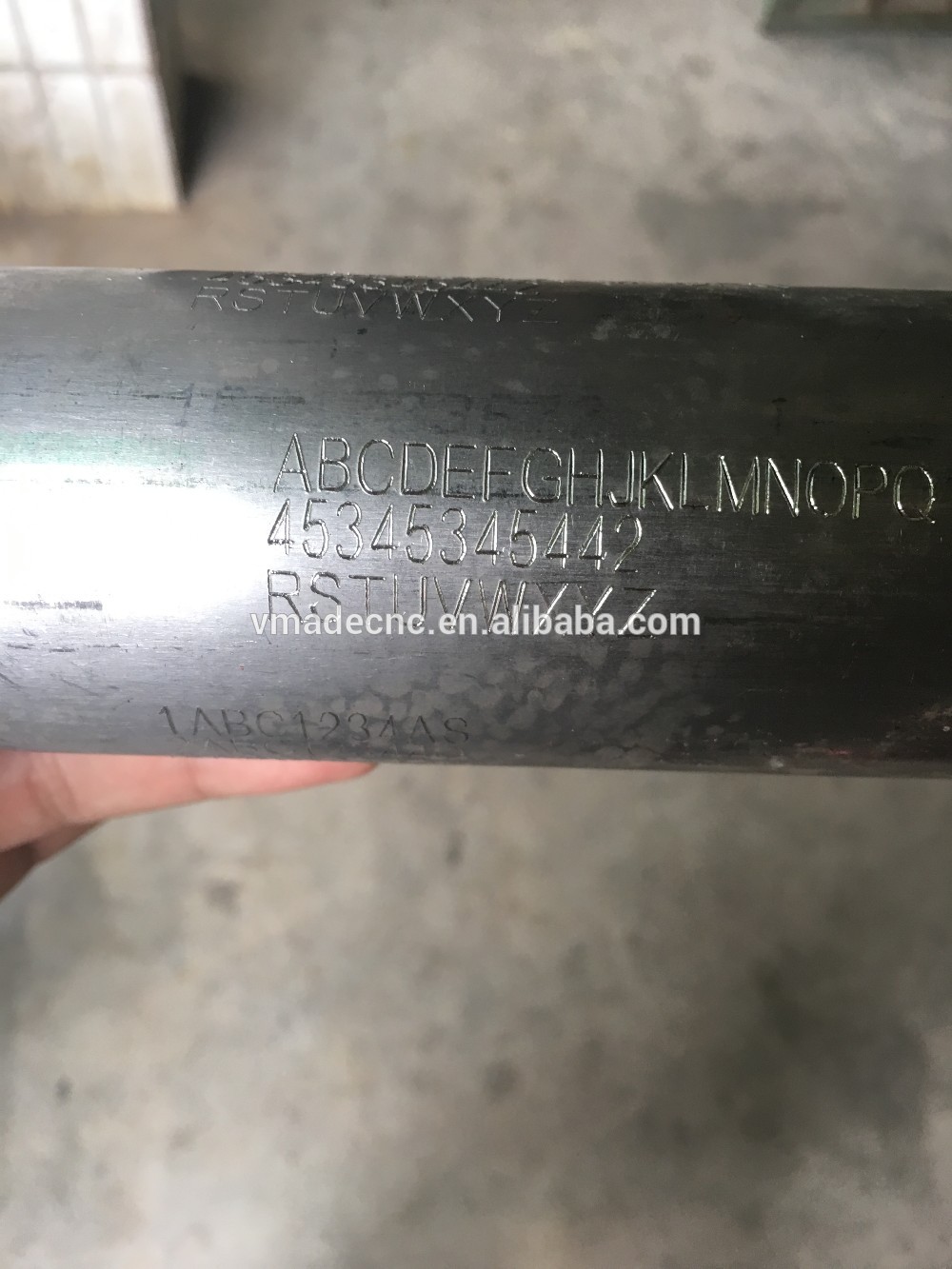

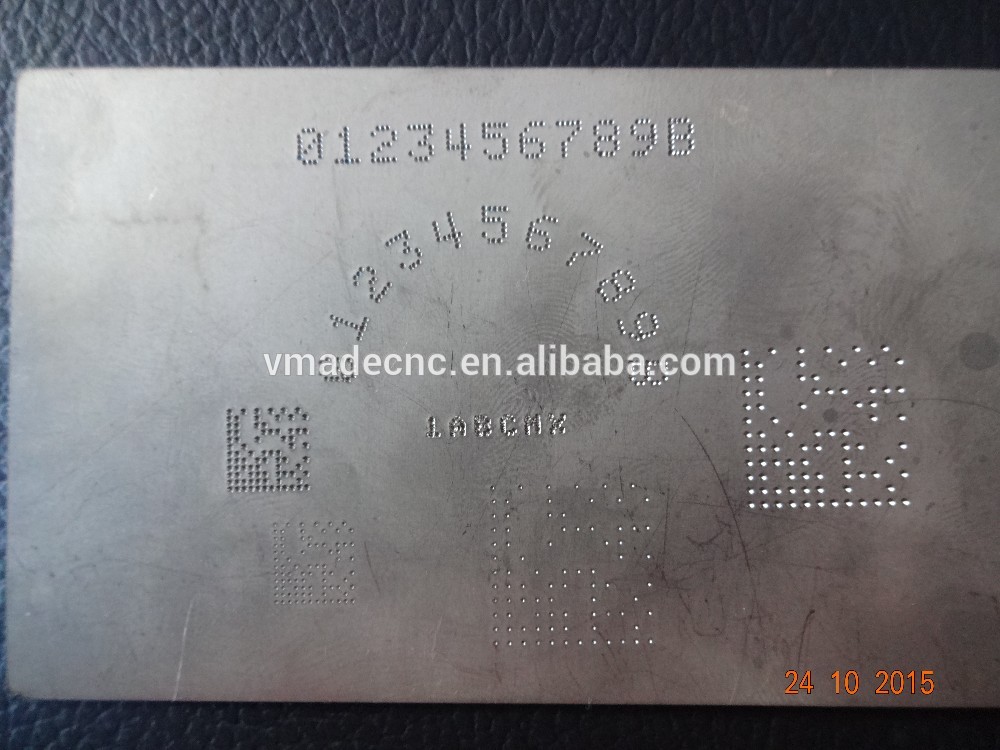

   detail images       sample   Our Services   1. 24/7 service is available to each customer. And if any technical questions or problems, our engineers  will help you and give you solutions on the phone or by face-to-face communication online. 2. One-year warranty is provided. (The detailed reference will be written into the final contract.) 3. Professional staff for installation and training if needed. 4. Spare parts are supplying on time or doing some inventory if promising certain sales volume. 5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient  and helpful. 6. If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and  give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD,  manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise  the final delivery is the same as displayed prototype.   Company Information  Jinan VMADE CNC Machine Co.,Ltd was founded in 2007. For 8 years, Vmade laser has always been devoted in studying and manufacturing laser cutting, engraving and marking etc. With all VMADE staffs'  persistence and hard worke, VMADE laser has developed to a large-scale international manufacturing company.   Contact details Welcome to Enjoy Us ~~We are a Big Family ~  What are you wait for ?     Telphone: 86-0531-88973625 Skype: sale02.vmadecnc.com  Whatapp /Mobile :  + 86 18253136902
