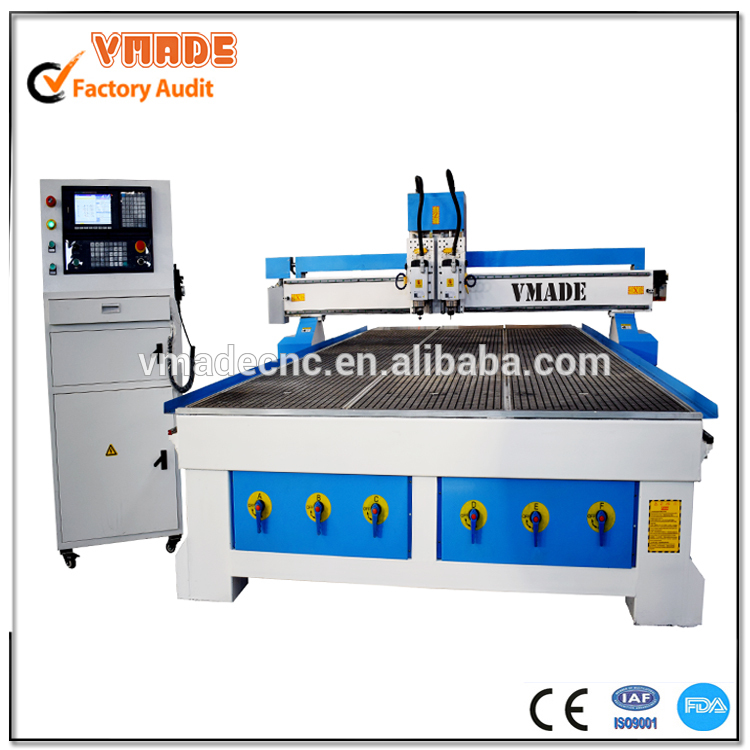

Double head 1300*2500mm Wood Working Cnc Router Machine Wood Craft Machine For Sale
Product Description
Main Features: 1. DSP Control suppot offline work,steel made new dargon gate,strong enough2. X,Y axes transmission with gear rack, Z axis transmission with imported ball screws, ensures stable and smooth movement of the machine.

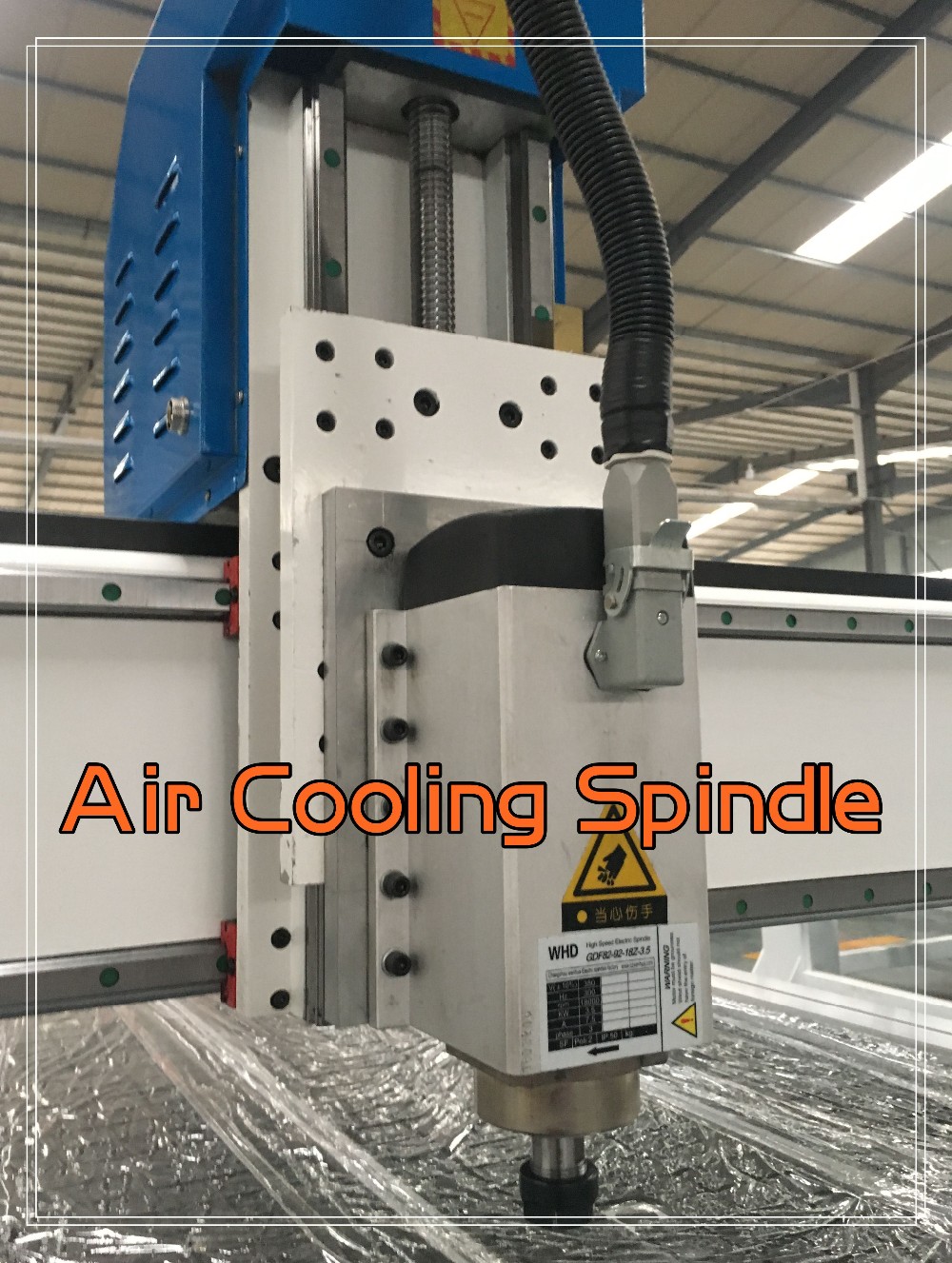

3. HQD/HSD aicooling spindle,strong power,suitable for cutting work needed
4. Applicatin of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power spindle, brushless, water cooling/air cooling, working vigorously with low noise. 6. the Y adopt taiwan imported hiwin/pmi square rails,fast speed,high precision 7.strongest body structure,thicked wall never broken or damage
Technical Parameter: Model | SKW-1325NV / SKW-1325NV/Customized as needed |
X,Y,Z axis workin g area | 1300*2500*200mm |
Machine size | 3005*2100*1600mm |

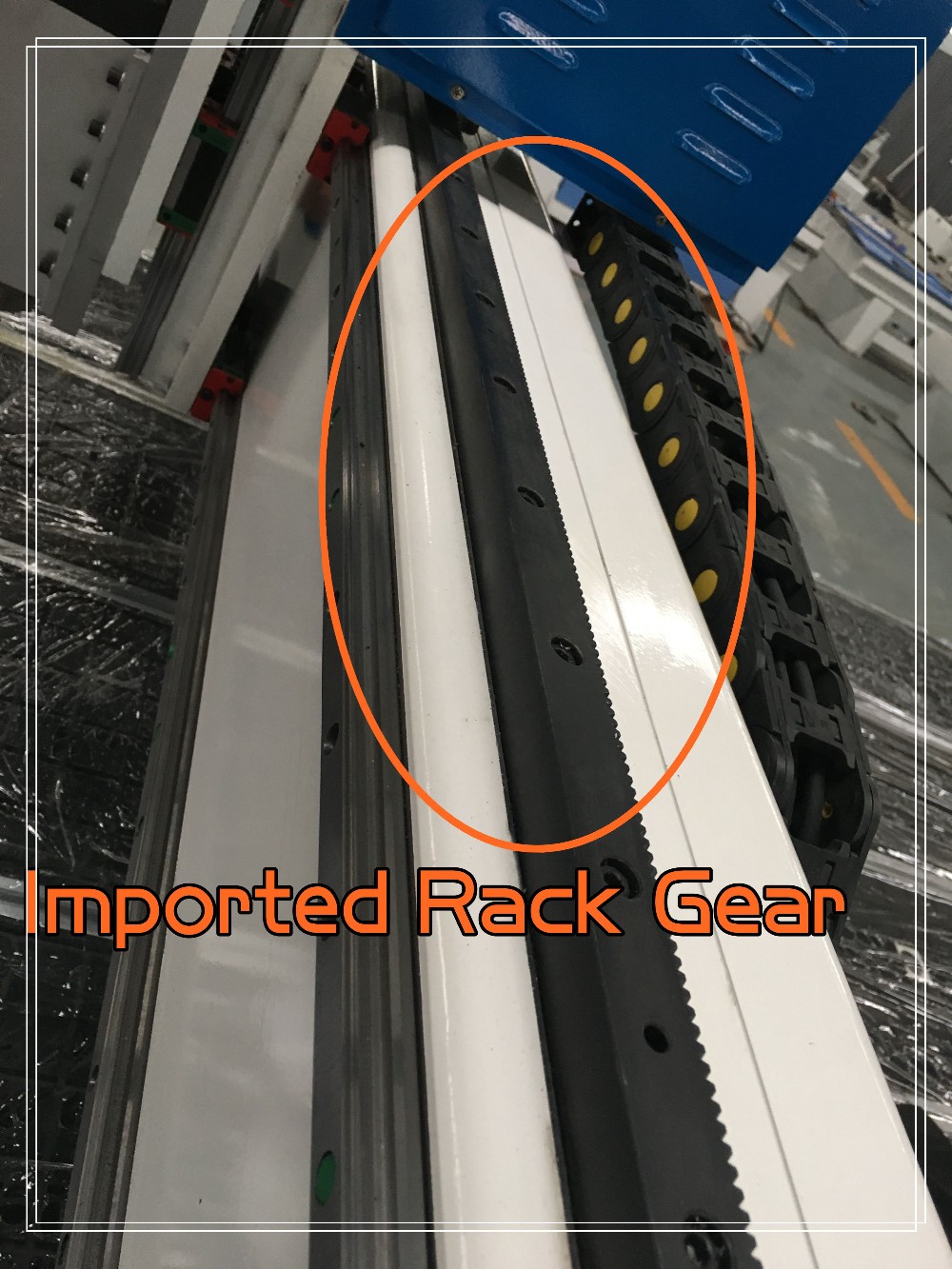

X,Y movement | Rack and pinion |
Z movement | Ballscrew transmission |

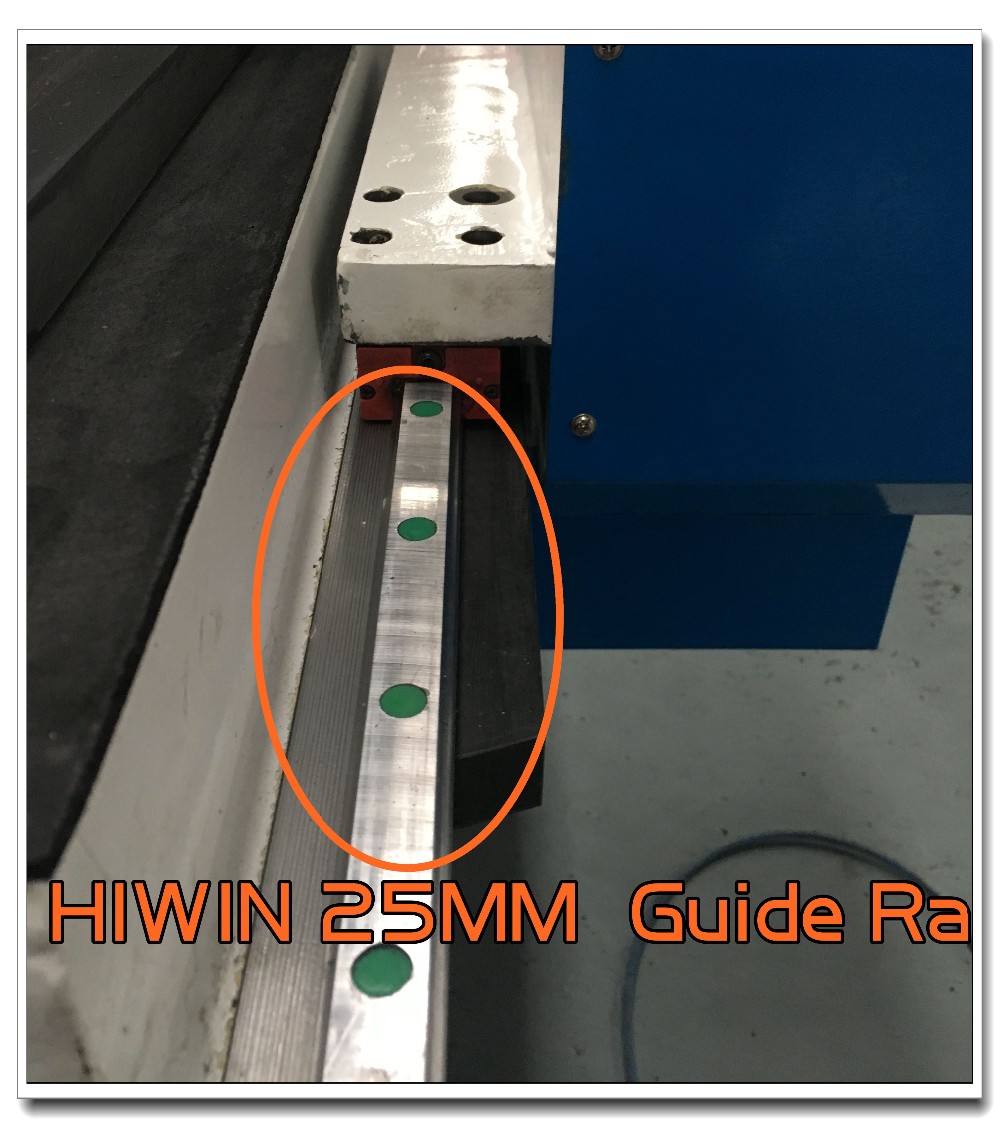

Guide | Taiwan HIWIN/PMI 20 square rails(round rails optional) |
Max idling speed | 40000mm/min |
Max engraving speed | 23000mm/min |
Spindle power | 3kw/4.5kw/6kw watercooling/aircooling (choose) |
Spindle speed | 18000-24000rpm |
inverter | 3.7KW/7.5KW(depend on spindle choose) |
Drive motors | Stepper motors (servo motors and drviers optiona) |

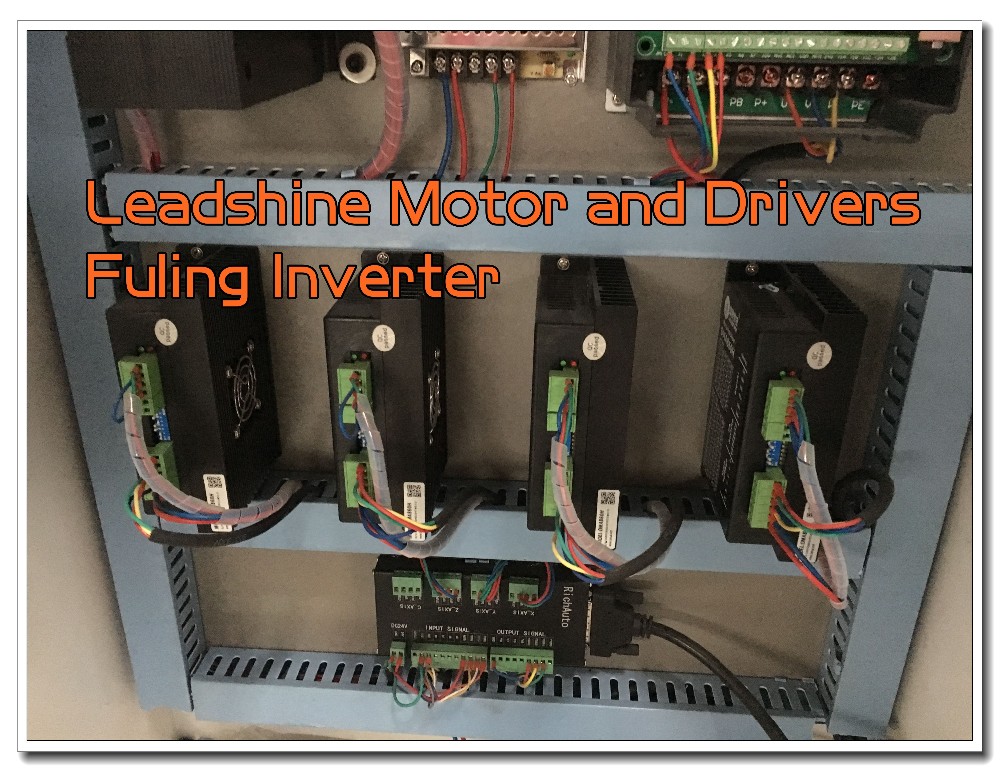

drivers | Leadshine |
Control system | NC-Studio as standard/DSP |
Working voltage | 1220V/380V or customized |
Command code | G code |
software | Artcam,type 3,etc |
collet | ER 25-32 |
Packing dimension | 3.1*2.1*1.82M |
weight | 1260kgs/1350kgs |
Standard equipment included | 1.automatic oil injection system 2.Tool sensor 3.vacuum table,5.5kw vacuum pump |

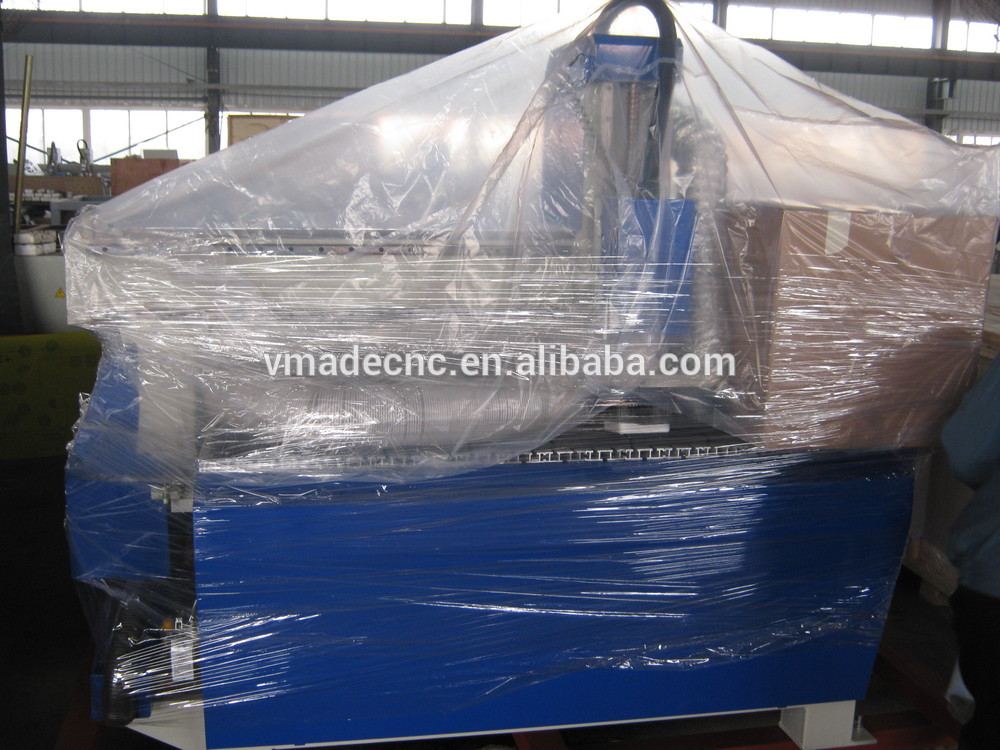

Packaging & Shipping
After-Sales Service

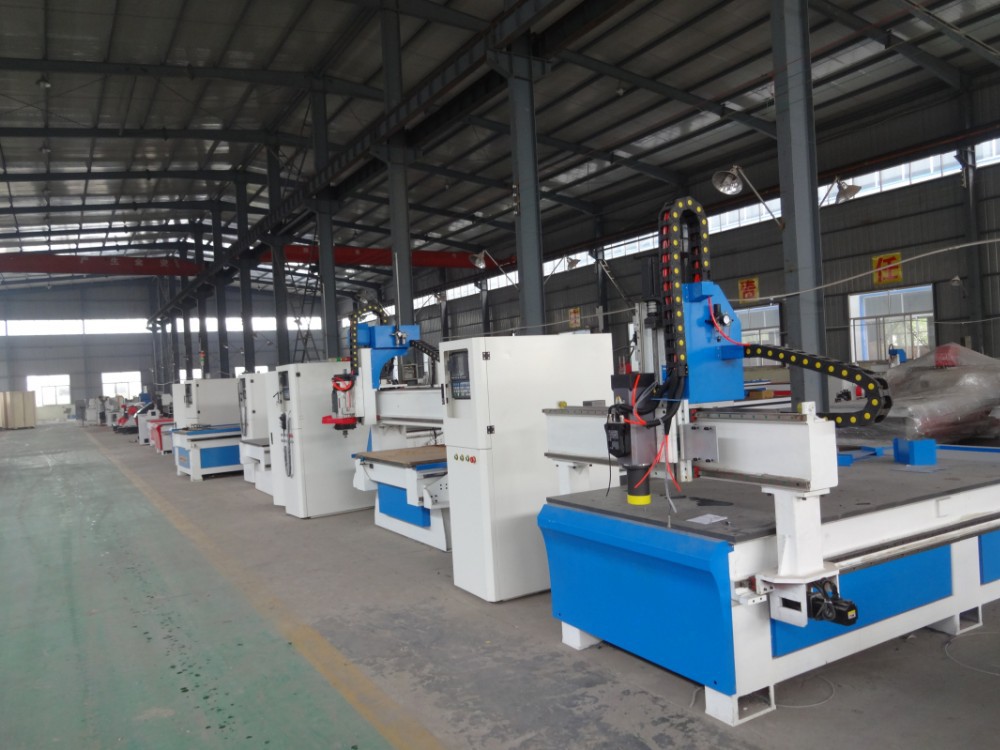

Company Information Jinan VMADE CNC Machine Co.,Ltd was founded in 2007. For 8 years, Vmade laser has always been devoted in studying and manufacturing laser cutting, engraving and marking etc. With all VMADE staffs' persistence and hard worke, VMADE laser has developed to a large-scale international manufacturing company.
contact us
Contact us if you need more details on Woodworking Machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Saw Machine Woodworking、Cnc Woodworking Carving machine. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : CNC router > Wood Working Machine
