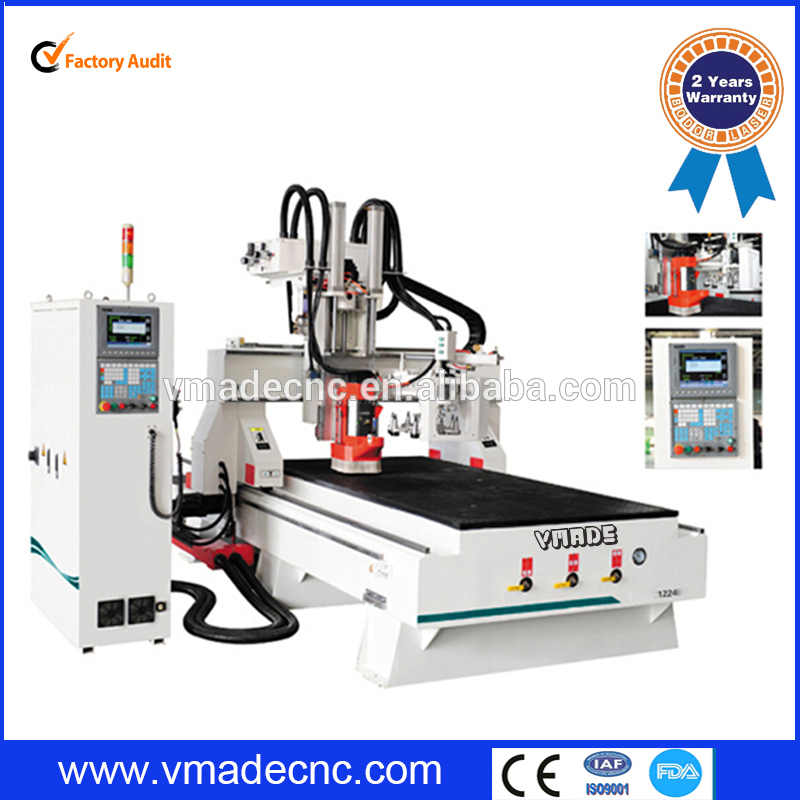

New woodworking machine/wood cnc router/woodworking engraving machine 1325

Product Description

     New woodworking machine/wood CNC router/woodworking engraving machine 1325

Product Description
Application
Mainly used for relief processing, wood door, cabinets, kitchen utensils, chairs,
decoration business, mould industry, wood panel, , wave board processing, MDF sheet carving,
screen, calligraphy tablet design , , wood furniture, computer tables, and so on.
Features
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped with T type gantry and thickening cast iron machine bed.
3. Equipped with 2 spindle heads, can processing several work pieces by one time,
saving time and improving the efficiency.
4. The Spindle heads distance is adjustable according to the work piece processing size.
5. It can also just open any one spindle head when working.
6. Can be controlled by computer, showing the processing path and estimated processing time.
7. Transverse T slot working table, better for the relief fixing.
8. Linear square guide rail, rack transmission, high speed, high precision and long life time
9. Function of re-carving after break point and power off, reducing the materials wasting.
10. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate,
UcanCam,Artcut engraving software, Coredraw, etc.
Technical parameters


Items

Description

Optional items

Effective working area

2000(X)mm*3000(Y)mm*
200(Z)mm



Max.thickness of the
 meterials

≤200mm(the distance between
Z-axis and the bottom of the
working station)



Materials

Square steel tube machine bed



Guide rail

Linear square guide rail



Transmission

Rack for X Y-axis ball screw
for Z-axis



Driving mode

Stepper motor /servo motor(option)



Spindle head

2 or more



Spindle power

3.0kw water cooling/  Italy HSD
 air cooling spind
le

Or higher or air cooling

Spindle speed

0-24000rpm/min



Empty traveling speed

0-60000mm/min



Engraving speed

0-25000mm/min



Resetting accuracy

0.05mm



Control system

PCI NcStudio

Or DSP offline or
MACH 3

Carving Instructions

G code *Uoo *mmg *plt HPGL



Compatible software

Artcam, Type 3, Ucancam,etc



Packing size

3950*2210*2050mm



Gross weight

1600kg

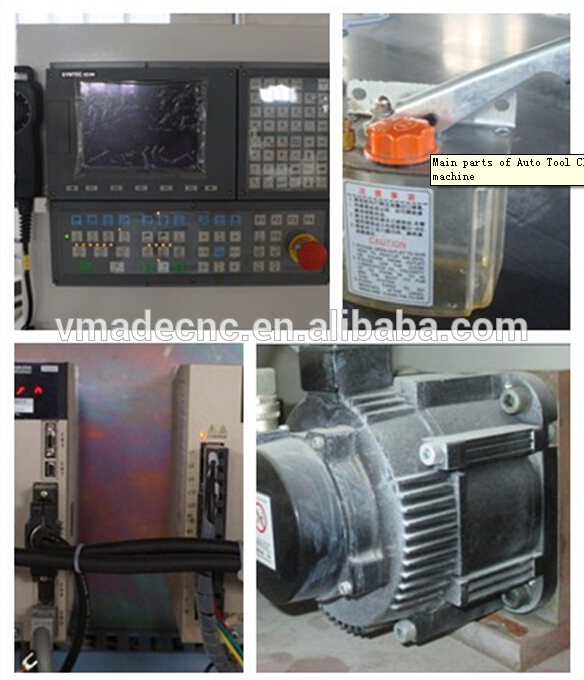

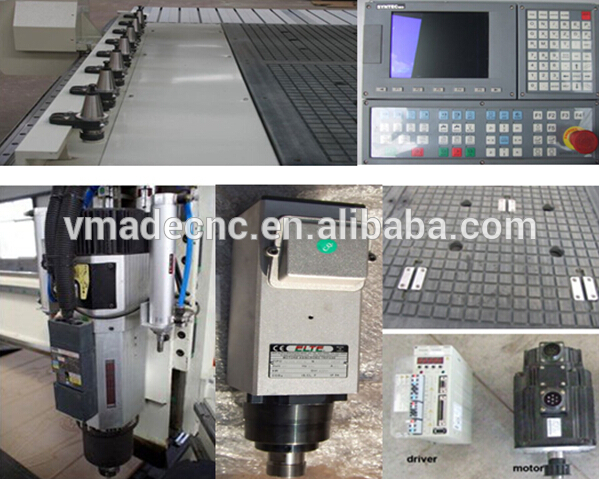

Machine configuration

Material
steal materials such as copper, aluminum ,iron
man-made marble, sand, plastic board PVC materials, wood board
Advertising board,Label design,Acrylic cutting,model, of the multi material deco
optional items Vacuum table, using the vacuum adsorption, better to fix the different size materials
Dust collector, helping to suck the dust, milling dust, keeping the machine clean
DSP offline control system, no need computer, more easier and convenient
Rotary axis, for the cylindrical materials processing.
Application
Mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs,
decoration business, mould industry, wood panel, , wave board processing, MDF sheet carving, Sample     packaging &shipping 15  working days for shipment
wooden packaging for the  machine       Company Information  Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City,
Shandong Province of China.

It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate  and attentive attitude on every step and always keep to learn the most advanced technology and create more  humanized products to all our customers.     contact details Please tell us what you need
1.What is your working size?
2.What material do you need to cut/engrave?
3. What is the thickness and size of each materials?
4.What is your business industry? signage or art craft works or what else ?
5.What is your full name,email,company name,website and contact number ? If you have any questions, Please contact us



Contact us if you need more details on 1325 woodworking machine. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wood cnc router for sale 、woodworking engraving machine 1325. If these products fail to match your need, please contact us and we would like to provide relevant information.
